DESCRIZIONE

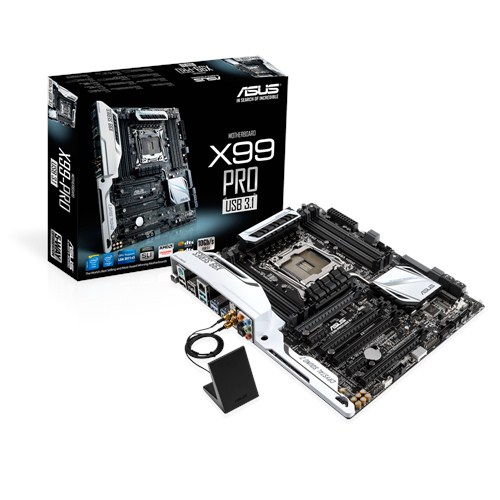

MB 2011 Asus X99-PRO/USB3.1

• CPU
  Intel® Socket 2011-v3 Core™ i7 Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Chipset
  Intel® X99
• Memoria
  8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Quad Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Supporto Multi-GPU
  Supports NVIDIA® Quad-GPU SLI™ Technology
  Supports NVIDIA® 3-Way SLI™ Technology
  Supports AMD Quad-GPU CrossFireX™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
• Slot di Espansione
  40-Lane CPU-
  3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *¹
  28-Lane CPU-
  3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *²
  1 x PCIe 2.0 x16 (x4 mode) *³
  2 x PCIe 2.0 x1 (x1 mode) *³
• Storage
  New Intel® Core™ i7 Processors :
  2 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
  Intel® X99 chipset :
  1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
  8 x SATA 6Gb/s port(s), *⁴,
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology*⁵
• LAN
  Intel® I218V, 1 x Gigabit LAN Controller(s)
• Wireless Data Network
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
• Bluetooth
  Bluetooth V4.0
• Audio
  Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
  - High-fidelity audio OP AMP(s)
  Audio Feature :
  - DTS Ultra PC II
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - BD Audio Layer Content Protection
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  - Top notch audio sensation delivers according to the audio configuration
  - EMI protection cover to prevent electrical noise to affect the amplifier quality
• Porte USB
  Intel® X99 chipset :
  5 x USB 3.0/2.0 port(s) (4 at mid-board)
  Intel® X99 chipset :
  8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
  ASMedia® USB 3.1 controller :
  2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue)
  ASMedia® USB 3.0 Hub :
  3 x USB 3.0/2.0 port(s) (3 at back panel, blue)
• Caratteristiche Speciali
  5-Way Optimization by Dual Intelligent Processors 5
  - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - 8 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS TPU :
  - Auto Tuning
  - GPU Boost
  - TPU switch
  ASUS EPU :
  - EPU switch
  ASUS Digital Power Design :
  - Industry leading Digital 8 Phase Power Design
  - Industry leading Digital 4 Phase DRAM Power Design
  - CPU Power Utility
  - DRAM Power Utility
  ASUS Wi-Fi GO!
  - Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
  - Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
  ASUS Exclusive Features :
  - USB BIOS Flashback
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - USB Charger+
  - M.2 & SATA Express
  - Anti-Surge
  - Onboard Button : Power/Reset
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - USB 3.1 Boost
  - Disk Unlocker
  - Turbo LAN
  - Crystal Sound 2
  Interactive HomeCloud
  - Media Streamer
  ASUS EZ DIY :
  - Precision Tweaker 2
  - ASUS O.C. Tuner
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS USB BIOS Flashback
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Special Memory O.C. Design
  Turbo App
  Fan Xpert 3
• Operating System Support
  Windows® 8.1
  Windows® 8
  Windows® 7
• Porte I/O Posteriori
  1 x PS/2 keyboard/mouse combo port(s)
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 (teal blue)
  4 x USB 3.0 (blue)
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
  1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
• I/O Interne
  1 x AAFP connector
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: gray,
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
  1 x TPM connector(s)
  1 x COM port(s) connector(s)
  8 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x EZ XMP switch
  1 x System panel(s) (Q-Connector)
  1 x Chassis Intrusion connector(s)
  1 x DRCT header(s)
  1 x MemOK! button(s)
  1 x Thermal sensor connector(s)
  1 x TPU switch(es)
  1 x EPU switch(es)
  1 x CPU/DRAM overvoltage jumper(s)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x Clear CMOS jumper(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
• Accessori
  User's manual
  ASUS Q-Shield
  6 x SATA 6Gb/s cable(s)
  1 x Feature manual
  1 x M.2 X4 bracket
  1 x Supporting DVD
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x SLI bridge(s)
  1 x Q-connector(s) (2 in 1)
• Sistema Operativo
  Windows® 8.1 32/64-bit
  Windows® 8 32/64-bit
  Windows® 7 32/64-bit
• Dimensioni Scheda
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
