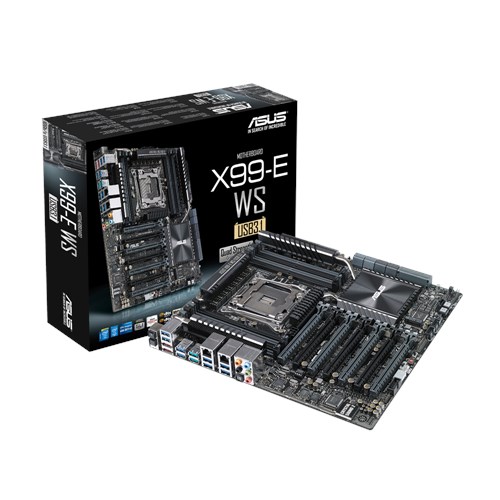

Scheda Madre Asus X99-E WS
Scheda Madre Asus X99-E WS CPU Socket Intel 2011-V3 Chipset X99 DDR4 M.2 Sata Express CEB
ID: 967
MODELLO: 90SB04Q0-M0EAY0
NOME COMMERCIALE: Scheda Madre Asus X99-E WS
EAN: 4716659869108
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 904
Recensioni 0
Rating 0 di 5
SOSPESO
€
507.10
Costo spedizione: € 9.00
Inserisci nel carrello
NOTE
*1 Intel® X99 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 13 support *2 8 x SATA 6.0 Gb/s ports* (4 x gray from controller 1, 4 x black from controller 2) *3 These functions will work depending on the CPU installed *4 These SATA ports are for data hard drivers only. ATAPI devices are not supported *5 ASMedia® USB 3.0 controller- supports ASUS USB 3.0 Boost *6 ASMedia® USB 3.0 Hubs- supports ASUS USB 3.0 BoostTAG
Tecnologia
Intel
Socket
Intel 2011-3
Chipset
Intel X99
Formato
CEB
Supporto RAM
DDR4
SATA3
+ 6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 3.0
+ 6-porte
Output Video
No Output Video
DESCRIZIONE
MB 2011 Asus X99-E WS
- CPU
Build in Intel® Socket 2011-v3 Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v3 product family
Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v3 product family - Chipset
Intel® X99
- Memoria
8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *1
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports DDR4 ECC RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Supporto Multi-GPU
Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology - Slot di Espansione
40-Lane CPU-
7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
28-Lane CPU-
7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) - Storage
Intel® X99 chipset : *1
1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 x4 Socket 3, gray, , with M Key, type 2260/2280 storage devices support (PCIE mode)
8 x SATA 6Gb/s port(s), gray, *2
Intel® Rapid Storage Technology supports*3
ASMedia® SATA Express controller : *4
1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
ASMedia® SATA 6Gb/s controller :
2 x eSATA 6Gb/s port(s)compatible with 2 x SATA 6.0 Gb/s ports - LAN
Intel® I210-AT, 1 x Gigabit LAN Controller(s)
Intel® I218LM, 1 x Gigabit LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) - Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 109 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
Premium Japanese-made 12K hours capacitors
- Absolute Pitch 192khz/24bit true BD lossless sound
Separate layer for left and right track, ensuring both sound deliver equal quality - Porte USB
Intel® X99 chipset :
4 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board)
Intel® X99 chipset :
4 x USB 2.0/1.1 port(s) (4 at mid-board)
ASMedia® USB 3.0 controller : *5
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
ASMedia® USB 3.0 controller : *6
8 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board) - Workstation Feature
7 x PCIe x 16 slot(s)
ASUS Dr. Power
12K hours Capacitors
ProCool Power Connector
Q-Code Logger - Caratteristiche Speciali
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS
- ASUS EZ Flash
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Media Streamer
Special Memory O.C. Design
Turbo App
Fan Xpert 3 - Operating System Support
Windows® 8.1
Windows® 8
Windows® 7 - Porte I/O Posteriori
2 x eSATA
2 x LAN (RJ45) port(s)
10 x USB 3.0 (blue)
1 x Optical S/PDIF out
8 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x Q-Code Logger button - I/O Interne
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
2 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Dr.Power switch(es)
1 x 3-pin CHASSIS(Chassis intrusion) connector - Accessori
User's manual
ASUS Q-Shield
1 x COM port cable(s)
12 x SATA 6Gb/s cable(s)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB 2.0 module(s) - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. - Gestibilità
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Disco di Supporto
Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version)
- Sistema Operativo
Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit - Dimensioni Scheda
CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
