Vendita Alimentatore PC Thermaltake Hamburg 530W|

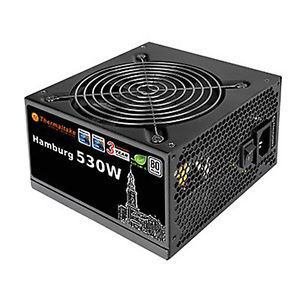

Alimentatore PC Thermaltake Hamburg 530W

Alimentatore PC Thermaltake Hamburg 530 530W 80+ Bronze ATX

ID: 801
NOME COMMERCIALE: Thermaltake Hamburg 530W
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 884
Recensioni 0
Rating 0 di 5
Alimentatore PC Thermaltake Hamburg 530W
Costo spedizione: € 9.00
Inserisci nel carrello


Non Modulare
Fino 550W


ATX 12V V2.3 enables most reliable and robust power delivery.
- Stable 530W continuous output (peak power 600W) @ 40 ℃ operating environment.
- Robust and dedicated single +12V output provides superior performance under all types of system loading.
- 80 PLUS Certified: with 80-86% efficiency @ 20-100% load under real world load conditions.
- Double-forward switching circuitry offers low power loss and high reliability.
- Universal AC input 100V~240V automatically scans and detects the correct voltage.
- Active Power Factor Correction provides clean and reliable power to your system.
- Ultra-silent operation with intelligent 12cm cooling fan speed control.
- Intel & AMD CPU compliant.
- Nvidia & ATI/AMD graphic card compatible.
- Dimension: 150mm(W)x86mm(H)x140mm(L).
- High reliability: MTBF>100,000 hours.
- Built in industrial-grade protections: Over Current, Over Voltage, Over Power and Short-Circuit protections.
- Safety / EMI : TUV, CE, UL, FCC, BSMI.

New Thermaltake SMART 530W saves energy through its high energy efficiency of up to 80% and is 80 PLUS certified

Supports Energy Star 5.0* energy standard:
New Thermaltake SMART 530W is suitable for use in Energy Star-compatible computers.

Supports Intel Deep Power Down C6 Status:
New Thermaltake SMART 530W helps your PC system operate more power efficiently.

Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure New Thermaltake SMART 530W meets WEEE & RoHS requirements.


Connector Type Connectors & Cable length
24pin 1 x 20+4pin Main connector(550mm)
ATX 12V 4+4pin 1 x ATX 12V 4+4pin connector(550mm)
PCI-E 6+2pin 1 x 6+2pin & 1 x 6+2pin PCI-E connectors (450mm + 150mm)
Molex & FDD 4 x Peripheral & 1 x FDD connectors (450mm + 150mm + 150mm +150mm +150mm)
SATA 3 x S-ATA connectors (450mm + 150mm + 150mm)
3 x S-ATA connectors (450mm + 150mm + 150mm)

Total Protection

Voltage Source Over Current Protection Over Voltage Protection Under Voltage protection
Protection Point (Max.) Protection Point  (Max.) Protection Point
+3.3V 40A 4.5V 2.0V ~ 2.4V
+5V 35A 7.0V 3.3V ~ 3.7V
+12V 65A 15.6V 8.5V ~ 9.5V
Short Circuit Protection: Activated when any DC rails short circuited.
Over Power Protection: Protection at 110%~150% full load.


P/N W0392RE
Type Intel ATX 12V 2.3
Max. Output Capacity 530W
Peak Output Capacity 600W
Color Black
Dimension of main body(H x W x D) 86mm x 150mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) @ 55% load at 230Vac 50Hz input.
Input current 10A – 5A
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature +10℃ to +40℃
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40 ℃ to +70 ℃
Storage Humidity 5% to 95%, non-condensing
Cooling System 120mm Fan: 2000 R.P.M. ± 10%
Efficiency 80% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval TUV, CE
PCI-E adaptor cable x 2
