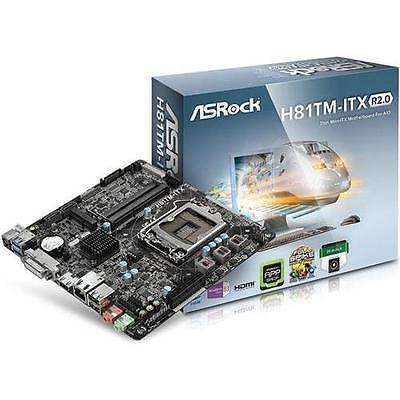

Scheda Madre ASRock H81TM-ITX R2.0
Scheda Madre ASRock H81TM-ITX R2.0 Socket 1150 Chipset H81 SO-DIMM DDR3/DDR3L LVDS Audio 7.1 CH Mini-ITX
ID: 452
MODELLO: 90-MXGVM0-AOUAYZ
NOME COMMERCIALE: Scheda Madre ASRock H81TM-ITX R2.0
EAN: 4717677322774
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA:
Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 849
Recensioni 0
Rating 0 di 5
SOSPESO
€
76.32
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1150
Chipset
Intel H81
Formato
Mini ITX
Supporto RAM
DDR3/DDR3L
SATA3
2-porte
USB 2.0
+ 6-porte
USB 3.0
2-porte
Output Video
DVI-HDMI
DESCRIZIONE
General | |
Unique Feature | ASRock Full Spike Protection ASRock Cloud ASRock APP Shop |
CPU | - Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors with up to 65W TDP in an LGA 1150 package - Supports Intel® Turbo Boost 2.0 Technology |
Chipset | - Intel® H81 |
Memory | - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L SO-DIMM Slots - Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
BIOS | - 32Mb AMI UEFI Legal BIOS with Multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM Voltage multi-adjustment |
Audio, Video and Networking | |
Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 512MB* - Three graphics output options: HDMI, DVI-I and LVDS - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz - Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz - Supports LVDS with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP function with HDMI - Supports Full HD 1080p Blu-ray (BD) playback with HDMI *The size of maximum shared memory may vary from different operating systems.
**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit. ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. |
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) |
LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I218V - Supports Intel® Remote Wake Technology - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Expansion / Connectivity | |
Slots | - 1 x PCI Express 2.0 x4 Slot - 1 x Half mini-PCI Express Slot |
Storage | - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
Connector | - 1 x CIR Header - 1 x COM Port Header - 1 x SPDIF Out Connector - 1 x Monitor Switch Header - 1 x Backlight Power Jumper - 1 x Panel Power Jumper - 1 x Backlight & Amp Volume Control Header - 1 x LVDS Connector - 1 x LPC Debug Header - 1 x Home Theater PC Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x Front Panel Audio Connector - 1 x Analog Surround Audio Header - 1 x Digital MIC Header - 1 x 3W Audio AMP Output Wafer Header - 1 x Internal Power Header - 1 x SATA Power Connector - 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
Rear Panel I/O | - 1 x DC Jack (Compatible with the 19V power adapter) - 1 x DVI-I Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Front Speaker / Microphone *Please use a 19V power adapter for the DC jack. his jack accepts dual barrel plugs with an inner diameter of 5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
|
Other Features / Miscellaneous | |
Software and BIOS | Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Interactive UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy Driver Installer |
Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1) |
Accessories | - Quick Installation Guide, Support CD, I/O Shields - 2 x SATA Data Cables - 1 x SATA 1 to 2 Power Cable - 1 x WiFi Module Screw |
Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
Form Factor | - Thin Mini-ITX Form Factor (Compatible with Mini-ITX) - Solid Capacitor for CPU power |
OS | - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
