DESCRIZIONE

General information
Type CPU / Microprocessor
Market segment Desktop
Family
Intel Core i3
Model number
i3-7300
CPU part numbers

CM8067703014426 is an OEM/tray microprocessor

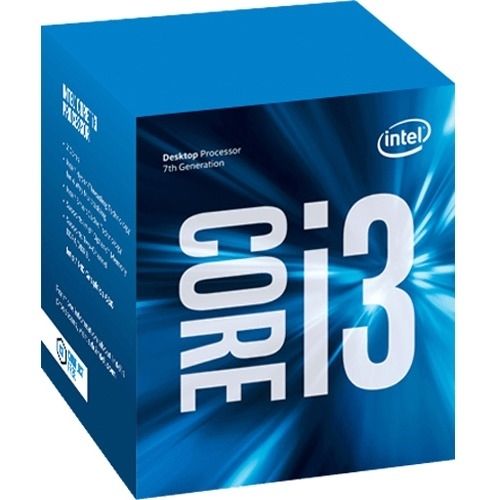

BX80677I37300 is a boxed processor (English version)
BXC80677I37300 is a boxed processor (Chinese version)

Frequency 4000 MHz
Bus speed 8 GT/s DMI
Clock multiplier 40
Package 1151-land Flip-Chip Land Grid Array
Socket Socket 1151 / H4 / LGA1151
Size 1.48" x 1.48" / 3.75cm x 3.75cm
S-spec numbers
Part number ES/QS processors Production processors
QL35 SR359
BX80677I37300
BXC80677I37300
CM8067703014426
Unknown
Architecture / Microarchitecture
Microarchitecture Kaby Lake
Processor core Kaby Lake-S
Core stepping S0 (SR359)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 4-way set associative caches
Level 3 cache size 4 MB 16-way set associative shared cache
Physical memory 64 GB
Multiprocessing Uniprocessor
Extensions and Technologies

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
HT / Hyper-Threading technology
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O
TSX / Transactional Synchronization Extensions
MPX / Memory Protection Extensions
SGX / Software Guard Extensions

Low power features

Core C1/C1E, C3, C6, C7 and C8 states
Package C2, C3, C6, C7 and C8 states
Enhanced SpeedStep technology

Integrated peripherals / components
Display controller

3 displays
DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4

Integrated graphics GPU Type: Intel HD 630
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1150
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-2133, DDR4-2400
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 38.4
Other peripherals

Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)

Electrical / Thermal parameters
Maximum operating temperature 100°C
Thermal Design Power 51 Watt
Notes on Intel Core i3-7300

The processor has the following security, data protection and/or software features: Intel Secure Key, Identity Protection technology, OS Guard and Boot Guard.
The CPU is compatible with DirectX 12, OpenGL 4.4, OpenCL 2.1 and Vulkan1.0.31 APIs.
The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
