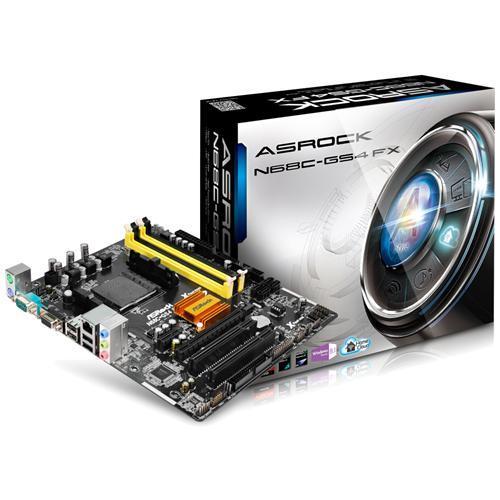

Asrock N68C-GS4 FX
Scheda Madre Asrock N68C-GS4 FX Socket AM3/AM3+ Chipset nVidia GeForce 7025 DDR3 Micro-ATX
ID: 304
MODELLO: 90-MXGSN0-A0UAYZ
NOME COMMERCIALE: N68C-GS4 FX
EAN: 4717677322446
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1426
Recensioni 0
Rating 0 di 5
SOSPESO
€
42.17
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
AMD
Socket
AMD AM3/AM3+
Chipset
nVidia GeForce 7025
Formato
Micro ATX
Supporto RAM
DDR3
SATA2
4-porte
USB 2.0
+ 6-porte
Output Video
VGA
DESCRIZIONE
| General | |
| A-Style | - Home Cloud |
| CPU | - Support up to 95W Socket AM3+ processors - Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors - Support up to 95W Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processors - Supports UCC feature (Unlock CPU Core) - Supports AMD's Cool 'n' Quiet Technology - FSB 1000 MHz (2.0 GT/s) - Supports Untied Overclocking Technology - Supports Hyper-Transport Technology *For more information, please refer to the "CPU Support List".
|
| Chipset | - NVIDIA® GeForce 7025 / nForce 630a |
| Memory | - Dual Channel DDR3/DDR2 Memory Technology* - 2 x DDR3 DIMM Slots - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB** - 2 x DDR2 DIMM Slots - Supports DDR2 1066***/800/667/533 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB** *The memory controller is integrated in the CPU.
AM2 and AM2+ CPUs can support only DDR2 memory. AM3 CPUs can support DDR2 and DDR3 memory (not simultaneously). AM3+ CPUs can support only DDR3 memory. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. ***Support with AM3 / AM2+ CPU. |
| BIOS | - 8Mb AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliant wake up events - Supports jumperfree - SMBIOS 2.3.1 support - CPU, VCCM, NB Voltage multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Integrated NVIDIA® GeForce 7025 graphics - DX9.0 VGA, Pixel Shader 3.0 - Max. shared memory 256MB - Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 / VIA® VT1705 Audio Codec) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Qualcomm® Atheros® AR8171 - Supports Qualcomm® Atheros® Security Wake On Internet Technology - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express x16 Slot - 1 x PCI Express x1 Slot - 2 x PCI Slots |
| Storage | - 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug *This mainboard does not support RAID with HDDs of 3TB and above.
|
| Connector | - 1 x ATA133 IDE Connector (supports 2 x IDE devices) - 1 x Floppy Connector - 1 x Print Port Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) |
| Rear Panel I/O | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | - ASRock OC Tuner - ASRock Instant Boot - ASRock Instant Flash - ASRock OC DNA - ASRock APP Charger - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU temperature sensing - Chassis temperature sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor | - Micro ATX Form Factor |
| OS | - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices o
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices o
