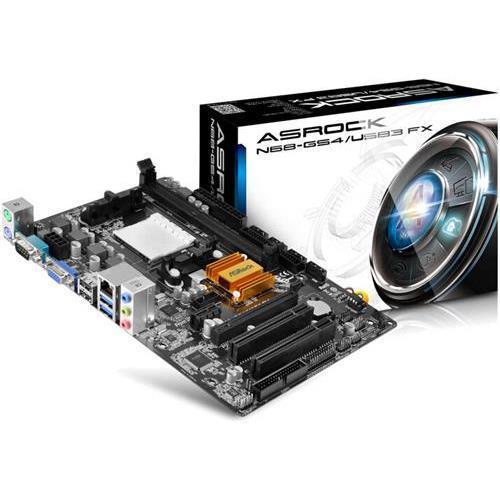

Asrock N68-GS4/USB3 FX
Scheda Madre Asrock N68-GS4/USB3 FX Socket AM3/AM3+ Chipset nVidia GeForce 7025 USB3.0 Micro-ATX
ID: 303
MODELLO: N68-GS4/USB3 FX
NOME COMMERCIALE: N68-GS4/USB3 FX
EAN: 4717677322804
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1310
Recensioni 0
Rating 0 di 5
SOSPESO
€
46.99
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
AMD
Socket
AMD AM3/AM3+
Chipset
nVidia GeForce 7025
Formato
Micro ATX
Supporto RAM
DDR3
SATA3
4-porte
USB 2.0
6-porte
USB 3.0
3-porte
Output Video
VGA
DESCRIZIONE
| General | |
| CPU | - Supports Socket AM3+ processors - Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors - Supports 8-Core CPU - 4 + 1 Power Phase design - Supports UCC feature (Unlock CPU Core) - Supports AMD's Cool 'n' Quiet Technology - FSB 1000 MHz (2.0 GT/s) - Supports Untied Overclocking Technology - Supports Hyper-Transport Technology |
| Chipset | - NVIDIA® GeForce 7025 / nForce 630a |
| Memory | - Dual Channel DDR3 Memory Technology - 2 x DDR3 DIMM Slots - Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | - 8Mb AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliant wake up events - Supports jumperfree - SMBIOS 2.3.1 support - CPU, VCCM, NB Voltage multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Integrated NVIDIA® GeForce 7025 graphics - DX9.0 VGA, Pixel Shader 3.0 - Max. shared memory 256MB - Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Realtek RTL8211E - Supports Wake-On-LAN - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express x16 Slot - 1 x PCI Express x1 Slot - 2 x PCI Slots |
| Storage | - 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug *This mainboard does not support RAID with HDDs of 3TB and above.
|
| Connector | - 1 x ATA133 IDE Connector (supports 2 x IDE devices) - 1 x Floppy Connector - 1 x Print Port Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.0 Header by Etron EJ188H (Supports 2 USB 3.0 ports) |
| Rear Panel I/O | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 2 x USB 2.0 Ports - 2 x USB 3.0 Ports (Etron EJ188H) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | - ASRock OC Tuner - ASRock Instant Boot - ASRock Instant Flash - ASRock OC DNA - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU temperature sensing - Chassis temperature sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor | - Micro ATX Form Factor - All Solid Capacitor design |
| OS | - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
