Biostar A88M

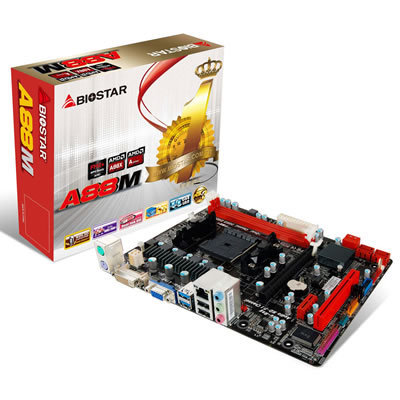

Scheda Madre Biostar A88M Socket FM2/FM2+ Chipset AMD A88X DDR3 Micro-ATX
ID: 299
MODELLO: A88M
EAN: 4712795658354
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 967
Recensioni 0
Rating 0 di 5
SOSPESO
€
49.50
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
AMD
Socket
AMD FM2+
Chipset
AMD A88X
Supporto RAM
DDR3
SATA3
6-porte
USB 2.0
4-porte
USB 3.0
3-porte
Output Video
VGA-DVI
DESCRIZIONE
| Chipset | AMD A88X |
| CPU SUPPORT | AMD A10 Processor AMD A8 Processor AMD A6 Processor AMD A4 Processor AMD E2 Processor AMD Athlon™ II X4 Processor Maximum CPU TDP (Thermal Design Power) : 100Watt |
| MEMORY | Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 32GB Memory |
| EXPANSION SLOT | 1 x PCI-E x16 3.0 Slot(supported by FM2+ CPU) 1 x PCI-E x1 2.0 Slot 1 x PCI Slot |
| STORAGE | 6 x SATA3 Connector Support SATA RAID: 0,1,5,10 |
| USB | 2 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Header |
| LAN | Realtek RTL8111G - 10/100/1000 Controller |
| INTEGRATED VIDEO | By CPU model AMD Dual Graphics Technology Supports DX11.1 Supports HDCP |
| CODEC | Realtek ALC892 8-Channel Blu-ray Audio |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x DVI (Dual Link) Connector 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector |
| INTERNAL I/O | 1 x Printer Header 1 x USB 3.0 Header 2 x USB 2.0 Header 6 x SATA3 6Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 24.4cm x 19.1cm ( W x L ) |
| OS SUPPORT | Support Windows XP / 7 / 8 / 10(x64) |
| BUNDLE SOFTWARE | BIO-Remote2 Smart Speed LAN |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Windows 8 Ready Supports 100% Solid capacitor Supports BIOS-Flasher Supports Charger Booster Supports BIOS Online Update |
