Biostar AM1ML

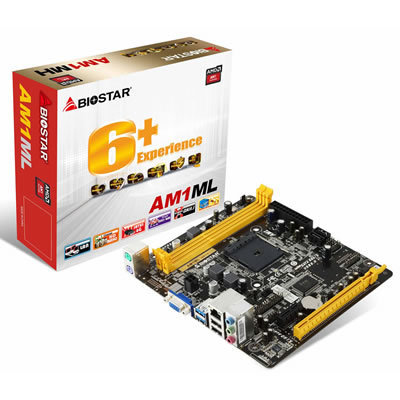

Scheda Madre Biostar AM1ML Socket AM1 DDR3 Micro-ATX
ID: 297
MODELLO: AM1ML
EAN: 4712013696670 , 0802700505874 , 0163121466022 , 0132018510025
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1024
Recensioni 0
Rating 0 di 5
SOSPESO
€
28.69
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
AMD
Socket
AMD AM1
Formato
Micro ATX
Supporto RAM
DDR3
SATA3
2-porte
USB 2.0
4-porte
USB 3.0
2-porte
Output Video
VGA
DESCRIZIONE
| CPU SUPPORT | AMD A6 Processor AMD A4 Processor AMD E2 Processor AMD E1 Processor Maximum CPU TDP (Thermal Design Power) : 25Watt |
| MEMORY | Support DDR3 / DDR3L 1600/1333/1066/800 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory |
| EXPANSION SLOT | 1 x PCI-E x16 2.0 Slot(x4) 1 x PCI-E x1 2.0 Slot |
| STORAGE | 2 x SATA3 Connector |
| USB | 2 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Header |
| LAN | Realtek RTL8106E - 10/100 Controller |
| INTEGRATED VIDEO | By CPU model Supports DX11.1 Max. Memory Share Up to 2GB |
| CODEC | Realtek ALC662 6-Channel HD Audio |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector |
| INTERNAL I/O | 1 x Printer Header 2 x USB 2.0 Header 2 x SATA3 6Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 19.1cm x 17cm ( W x L ) |
| OS SUPPORT | Support Windows XP / 7 / 8 / 8.1 / 10(x64) |
| BUNDLE SOFTWARE | BIO-Remote2 Smart Speed LAN |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Windows 8 Ready Supports Solid capacitor Supports BIOS-Flasher Supports Charger Booster Supports BIOS Online Update |
