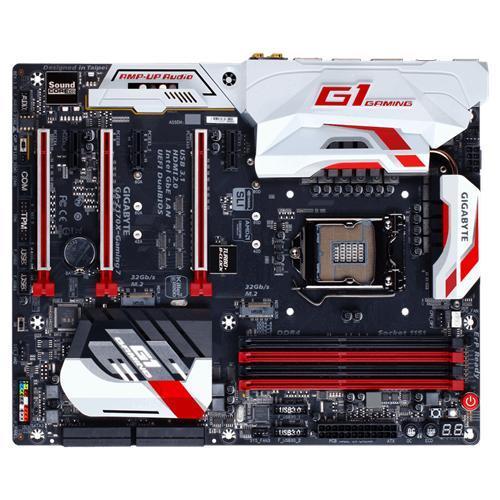

Scheda Madre Gigabyte GA-Z170X-GAMING7

Scheda Madre Gigabyte GA-Z170X-GAMING7 Socket 1151Socket 1151 Chipset Intel Z170 M.2 Socket DDR4 USB 3.1 ATX

ID: 286
MODELLO: GA-Z170X-GAMING 7
NOME COMMERCIALE: Scheda Madre Gigabyte GA-Z170X-GAMING 7
EAN: 4719331829384
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 217
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte GA-Z170X-GAMING7
Scheda Madre Gigabyte GA-Z170X-GAMING7
239.69
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel Z170
Formato
ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA2
2-porte
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
4-porte
USB 3.0
+ 6-porte
USB 3.1
Type-A + Type-C
Output Video
HDMI-DP

DESCRIZIONE

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel®Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
ŠŠ Integrated Graphics Processor+MegaChips MCDP2800 chip:
  1. 1 x HDMI 2.0 port
    Requires the latest Intel® Graphic Driver from GIGABYTE website
Maximum shared memory of 512 MB
Audio
  1. Creative® Sound Core 3D chip
  2. Support for Sound Blaster Recon3Di
  3. TI Burr Brown® OPA2134 operational amplifier
  4. High Definition Audio
  5. 2/5.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
  2. 1 x Killer E2400 chip (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
  4. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for 3-Way/2-Way AMD CrossFire™ and 2-Way NVIDIA® SLI™ Technology
Storage Interface Chipset:
  1. 2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-10 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
ASMedia® ASM1061 chip:
  1. 2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode only
USB Chipset:
  1. 5 x USB 3.0/2.0 ports on the back panel
  2. 4 x USB 2.0/1.1 ports (available through the internal USB headers)
Chipset+Renesas® USB 3.0 Hub:
  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
Chipset+Intel® Thunderbolt™ 3 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x M.2 Socket 3 connectors
  4. 3 x SATA Express connectors
  5. 8 x SATA 6Gb/s connectors
  6. 1 x I/O shield audio LED power connector
  7. 1 x CPU fan header
  8. 1 x water cooling fan header (CPU_OPT)
  9. 3 x system fan headers
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 2 x USB 3.0/2.0 headers
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x power button
  18. 1 x reset button
  19. 1 x Clear CMOS button
  20. 1 x ECO button
  21. 1 x OC button
  22. 1 x audio gain control switch
  23. Voltage Measurement Points
  24. 1 x BIOS switch
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C™ port, with USB 3.1 support
  5. 1 x USB 3.1 Type-A port (red)
  6. 5 x USB 3.0/2.0 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
  1. GA-Z170X-Gaming 7 motherboard
  2. Motherboard driver disk
  3. User's Manual
  4. Quick Installation Guide
  5. Four SATA cables
  6. I/O Shield
  7. One 2-Way SLI bridge connector
  8. One G Connector
  9. One pack of back I/O dust covers
