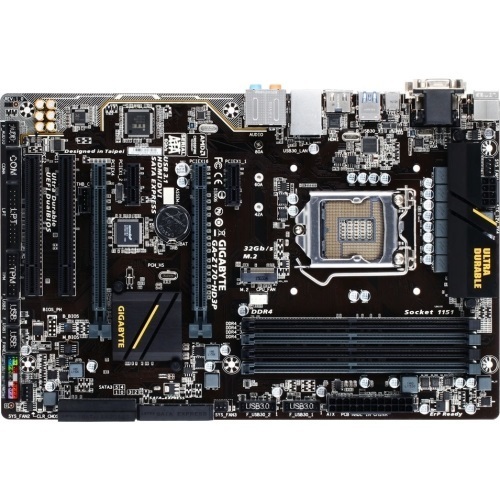

Scheda Madre Gigabyte GA-Z170-HD3P

Scheda Madre Gigabyte GA-Z170-HD3P Socket 1151 Chipset Intel Z170 M.2 Socket DDR4 USB 3.1 Micro-ATX

ID: 280
MODELLO: GA-Z170-HD3P
NOME COMMERCIALE: Scheda Madre Gigabyte GA-Z170-HD3P
EAN: 4719331829308
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 170
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte GA-Z170-HD3P
Scheda Madre Gigabyte GA-Z170-HD3P
105.09
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel Z170
Formato
ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
6-porte
USB 3.0
6-porte
USB 3.1
Type-A + Type-C
Output Video
VGA-DVI-HDMI

DESCRIZIONE

Processore
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
Chipset
  • Intel® Z170 Express Chipset
Memoria
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  3. Architettura di memoria a doppio canale
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Supporta le memorie dotate di Profilo XMP
  7. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
(Please refer "Memory Support List" for more information.)
Grafica integrata Integrated Graphics Processor - Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4a version.
  3. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  4. Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC887 codec
  2. Audio ad alta definizione
  3. Audio a 2/4/5.1/7.1 canali
  4. Supporto per S / PDIF
LAN
  • Realtek® GbE LAN chip (10/100/1000 Mbit)
Slot di Espansione
  1. 1 Slot PCI Express 16X,
    operante a 16X

    *Per migliori Performance, se solo una Scheda Video PCI è installata,
    assicurati che questi sia inserita in uno Slot PCI Express 16X.
  2. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
  3. * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX1_2 slot will become unavailable when a PCIe x4 expansion card is installed.
  4. * The PCIEX4 slot will run at up to x1 speed if the PCIEX1_2 slot is populated with an expansion card.
  5. 2 x PCI Express x1 slots
  6. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  7. 2 x PCI slots
Tecnologia Multi GPU
  • Support for 2-Way AMD CrossFire™ Technology
Interfaccia di storage Chipset:
  1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  5. * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB Chipset:
  1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + ASMedia® ASM1142 chip:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Connettori Interni I/O
  1. 1 x Connettore per porta Parallela
  2. 1 x M.2 Socket 3 connector
  3. 1 Connettore di Alimentazione ATX ad 8-pin
  4. 3 x system fan headers
  5. 1 Connettore per Ventola della CPU
  6. 1 Connettore per Pannello Frontale
  7. 1 Connettore di Alimentazione ATX a 24-pin
  8. 2 x USB 3.0/2.0 headers
  9. 1 Connettore per uscite Audio Frontali
  10. 2 x Connettori USB 2.0/1.1
  11. 1 Porta seriale
  12. 1 x Clear CMOS jumper
  13. 1 x S/PDIF Out header
  14. 6 x SATA 6Gb/s connectors
  15. 1 x Trusted Platform Module (TPM) header
  16. 1 x Thunderbolt™ add-in card connector
  17. 3 x SATA Express connectors
Pannello Posteriore I/O
  1. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  2. 2 x USB 2.0/1.1 ports
  3. 1 x USB Type-C™ Port, with USB 3.1 support
  4. 3 x USB 3.0/2.0 ports
  5. 1 x USB 3.1 Type-A port (red)
  6. 1 Porta HDMI
  7. 1 Connessione per Mouse e Tastiera PS/2
  8. 1 x Porta D-Sub
  9. 1 x Porta DVI-D
  10. 1 Porta RJ-45
I/O Controller
  • iTE® I/O Controller Chip
Monitoraggio H/W
  1. Rilevamento delle temperature di CPU e di Sistema
  2. CPU/System fan speed control
  3. Rilevamento della velocità di rotazione della ventola della CPU e del Sistema
  4. Allarme per il malfunzionamento della ventole della CPU e del sistema
  5. CPU/System overheating warning
  6. Rilevamento dei voltaggi del sistema
  7. * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Support for DualBIOS™
  3. Use of licensed AMI UEFI BIOS
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Altre Caratteristiche
  1. Supporta il Q-Flash
  2. Support for Xpress Install
  3. Support for Smart Switch
  4. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
  5. Easy RAID
  6. @ BIOS ™
  7. Auto Green
  8. Support for Cloud Station
  9. EasyTune
  10. USB Blocker
  11. Smart TimeLock
  12. Fast Boot
  13. System Information Viewer
  14. 3D OSD
  15. Smart Keyboard
  16. Smart Backup
Software in Bundle
  1. Intel® Smart Response Technology
  2. cFosSpeed
  3. Norton® Internet Security (OEM version)
Sistema Operativo
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
  3. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Caratteristiche Fisiche
  • ATX Form Factor; 30.5cm x 19.9cm
Box Contents
  1. GA-Z170-HD3P motherboard
  2. Two SATA cables
  3. Motherboard driver disk
  4. I/O Shield
  5. User's Manual
  6. One G Connector
