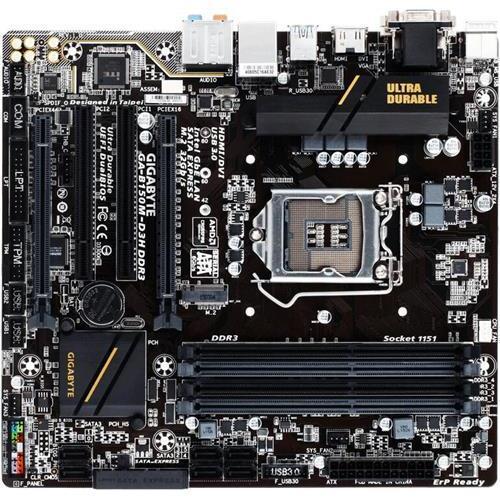

Scheda Madre Gigabyte GA-B150M-D3H

Scheda Madre Gigabyte GA-B150M-D3H-DDR3 Socket 1151 Chipset Intel B150 DDR3 SATA Express M.2 Socket Micro-ATX

ID: 278
MODELLO: GA-B150M-D3H DDR3
NOME COMMERCIALE: Scheda Madre GA-B150M-D3H
EAN: 0889523001677 , 4719331830250
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 134
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte GA-B150M-D3H
Scheda Madre Gigabyte GA-B150M-D3H
84.85
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel B150
Formato
Micro ATX
Supporto RAM
DDR3
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
2-porte
USB 3.0
4-porte
Output Video
VGA-DVI-HDMI

DESCRIZIONE

Processore
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
Chipset
  • Intel® B150 Express Chipset
Memoria
  1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
  2. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  3. Architettura di memoria a doppio canale
  4. Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
  5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
  6. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
(Please refer "Memory Support List" for more information.)
Grafica integrata Integrated Graphics Processor - Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4a version.
  3. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  4. Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC892 codec
  2. Audio ad alta definizione
  3. Audio a 2/4/5.1/7.1 canali
  4. Supporto per S / PDIF
LAN
  • Intel® GbE LAN chip (10/100/1000 Mbit)
Slot di Espansione
  1. 1 Slot PCI Express 16X,
    operante a 16X

    *Per migliori Performance, se solo una Scheda Video PCI è installata,
    assicurati che questi sia inserita in uno Slot PCI Express 16X.
  2. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
  3. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 2 x PCI slots
Tecnologia Multi GPU
  • Support for 2-Way AMD CrossFire™ Technology
Interfaccia di storage Chipset:
  1. 1 x SATA Express connector
  2. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  3. 6 x SATA 6Gb/s connectors
USB Chipset:
  1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Connettori Interni I/O
  1. 1 Connettore per porte USB 3.0/2.0
  2. 1 x SATA Express connectorŠ
  3. 1 x Connettore per porta Parallela
  4. 1 x M.2 Socket 3 connector
  5. 1 Connettore di Alimentazione ATX ad 8-pin
  6. 3 x system fan headers
  7. 1 Connettore per Ventola della CPU
  8. 1 Connettore per Pannello Frontale
  9. 1 Connettore di Alimentazione ATX a 24-pin
  10. 1 Connettore per uscite Audio Frontali
  11. 2 x Connettori USB 2.0/1.1
  12. 1 Porta seriale
  13. 1 x Clear CMOS jumper
  14. 1 x S/PDIF Out header
  15. 6 x SATA 6Gb/s connectors
  16. 1 x Trusted Platform Module (TPM) header
  17. 1 x Thunderbolt™ add-in card connector
Pannello Posteriore I/O
  1. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  2. 2 x USB 2.0/1.1 ports
  3. 4 x USB 3.0/2.0 ports
  4. 1 Porta HDMI
  5. 1 Connessione per Mouse e Tastiera PS/2
  6. 1 x Porta D-Sub
  7. 1 x Porta DVI-D
  8. 1 Porta RJ-45
I/O Controller
  • iTE® I/O Controller Chip
Monitoraggio H/W
  1. Rilevamento delle temperature di CPU e di Sistema
  2. Rilevamento della velocità di rotazione della ventola della CPU e del Sistema
  3. Allarme per il malfunzionamento della ventole della CPU e del sistema
  4. CPU/System overheating warning
  5. Rilevamento dei voltaggi del sistema
  6. CPU/System fan speed control
  7. * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Support for DualBIOS™
  3. Use of licensed AMI UEFI BIOS
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Altre Caratteristiche
  1. Supporta il Q-Flash
  2. Support for Xpress Install
  3. Support for Smart Switch
  4. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
  5. @ BIOS ™
  6. Auto Green
  7. Support for Cloud Station
  8. EasyTune
  9. USB Blocker
  10. Smart TimeLock
  11. Fast Boot
  12. System Information Viewer
  13. 3D OSD
  14. Smart Keyboard
  15. Smart Backup
Software in Bundle
  1. Intel® Small Business Advantage
  2. cFosSpeed
  3. Norton® Internet Security (OEM version)
Sistema Operativo
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
  3. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Caratteristiche Fisiche
  • Micro ATX Form Factor; 24.4cm x 22.5cm
