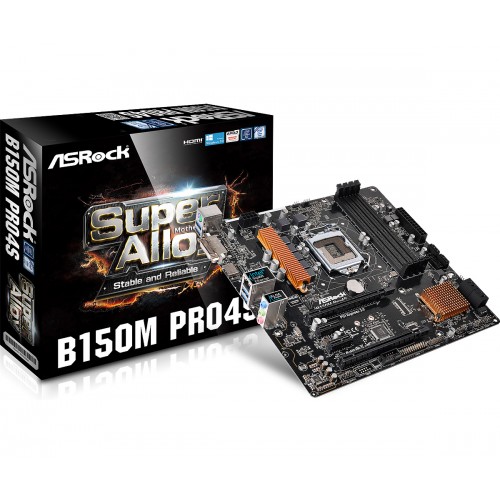

Scheda Madre B150M Pro4S 90-MXGZX0-A0UAYZ
Scheda Madre B150M Pro4S Socket Intel 1151 Chipset Intel B150 DDR4 Micro ATX
ID: 2697
MODELLO: 90-MXGZX0-A0UAYZ
NOME COMMERCIALE: Scheda Madre B150M Pro4S
EAN: 4717677327137
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 662
Recensioni 0
Rating 0 di 5
SOSPESO
€
73.04
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel B150
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
6-porte
USB 2.0
2-porte
USB 3.0
6-porte
Output Video
DVI-HDMI
DESCRIZIONE
| Unique Feature | ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop |
| CPU | - Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) - Digi Power design - 6 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology |
| Chipset | - Intel® B150 - Supports Intel® Small Business Advantage 4.0 |
| Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM Voltage Multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1024MB* - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *The size of maximum shared memory may vary from different operating systems.
**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ *Supports NVMe SSD as boot disks
|
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | - 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) *All CPU/Chassis Fan Connectors can auto detect if 3-pin or 4-pin fan is in use.
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and BIOS | Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Easy Driver Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
