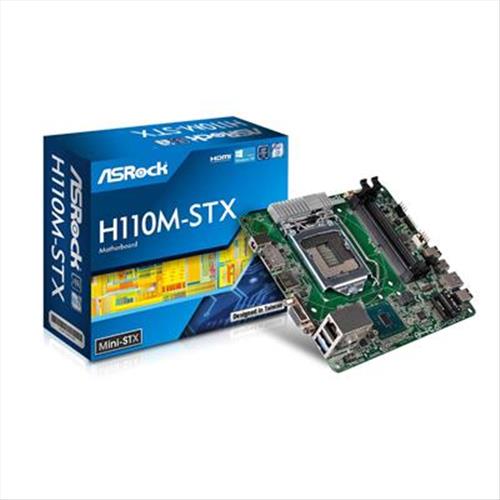

Scheda Madre H110M-STX 90-BXG2T0-A0UAYP
Scheda Madre H110M-STX Socket Intel 1151 Chipset Intel H110 DDR4 Mini-STX
ID: 2682
MODELLO: 90-BXG2T0-A0UAYP
NOME COMMERCIALE: Scheda Madre H110M-STX
EAN: 4717677331745
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 795
Recensioni 0
Rating 0 di 5
SOSPESO
€
82.41
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel H110
Formato
Mini-STX
Supporto RAM
DDR4
SATA3
2-porte
Ultra M.2
M.2 Socket
USB 2.0
2-porte
USB 3.0
1-porta
Output Video
VGA-HDMI
DESCRIZIONE
| CPU | - Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) - Supports CPU up to 65W* - Supports Intel® Turbo Boost 2.0 Technology *It is recommended to use 120W power adaptor. 90W power adapter only supports CPU with a maximum of 51W TDP.
Please refer to "CPU Support List" for further information. |
| Chipset | - Intel® H110 |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 SO-DIMM Slots - Supports DDR4 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM Voltage Multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1024MB** - Three graphics output options: D-Sub, HDMI and DisplayPort 1.2*** - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with HDMI and DisplayPort 1.2 Ports - Supports Full HD 1080p Blu-ray (BD) playback with HDMI and DisplayPort 1.2 Ports *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**The size of maximum shared memory may vary from different operating systems. ***Supports up to 2 displays simultaneously ****Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. *****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. |
| Audio | - Realtek ALC283 Audio Codec - 1 x Headphone/Headset Jack - 1 x MIC-In |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Storage | - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 1 x M.2 Socket, support M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disks
SATA type M.2 module is not supported. |
| Connector | - 1 x Chassis Intrusion Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 5-pin) - 1 x Internal Speaker Header - 1 x Front Panel Header - 1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Rear Panel I/O | - 1 x DC Jack (Compatible with the 19V power adapter)* - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) *Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.
|
| Other Features / Miscellaneous | |
| Software and BIOS | Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI - ASRock EZ Mode - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Easy Driver Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data with Power Cable - 1 x Screw for M.2 Socket - 1 x Screw for WiFi Module |
| Hardware Monitor | - CPU temperature sensing - CPU Fan Tachometer - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - Mini-STX Form Factor: 5.5-in x 5.8-in, 14.0 cm x 14.7 cm |
