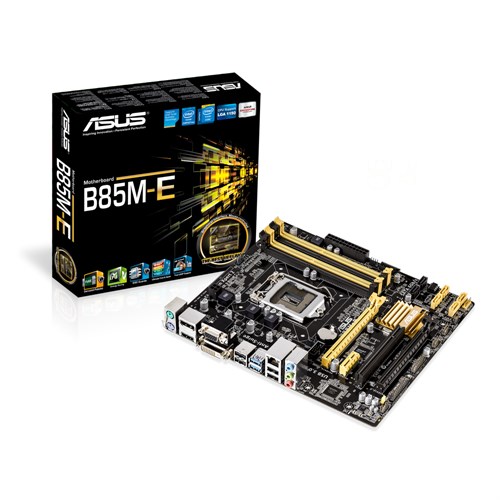

Scheda Madre B85M-E 90MB0F60-M0EAY5
Scheda Madre B85M-E Socket Intel 1150 Chipset Intel B85 DDR3 Micro-ATX
ID: 2628
MODELLO: 90MB0F60-M0EAY5
NOME COMMERCIALE: Scheda Madre B85M-E
EAN: 4716659553724
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 649
Recensioni 0
Rating 0 di 5
SOSPESO
€
93.81
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1150
Chipset
Intel B85
Formato
Micro ATX
Supporto RAM
DDR3
SATA3
4-porte
SATA2
2-porte
USB 2.0
4-porte
USB 3.0
2-porte
Output Video
VGA-DVI-HDMI
DESCRIZIONE
- CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. - Chipset
Intel® B85
- Memoria
4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory
Dual Channel Memory Architecture - Grafica
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously - Supporto Multi-GPU
Supports AMD Quad-GPU CrossFireX™ Technology
- Slot di Espansione
1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
1 x PCI - Storage
Intel® B85 chipset :
2 x SATA 3Gb/s port(s), dark brown
4 x SATA 6Gb/s port(s), yellow, - LAN
Realtek® 8111F, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function - Porte USB
Intel® B85 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® B85 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) - Caratteristiche Speciali
ASUS EPU :
- EPU
GPU Boost
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors - Operating System Support
Windows® 8.1
Windows® 8
Windows® 7 - Porte I/O Posteriori
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Audio jack(s) - I/O Interne
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s) - BIOS
128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- Gestibilità
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
- Disco di Supporto
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) - Dimensioni Scheda
mATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )
