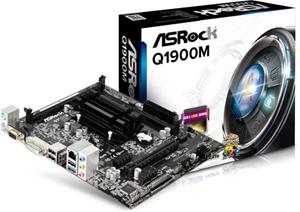

Scheda Madre Asrock Q1900M 90-MXGTH0-A0UAYZ
Scheda Madre Asrock Q1900M CPU a bordo J1900 DDR3 Micro-ATX
ID: 2602
MODELLO: 90-MXGTH0-A0UAYZ
NOME COMMERCIALE: Asrock Q1900M
EAN: 4717677323207
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 698
Recensioni 0
Rating 0 di 5
SOSPESO
€
61.02
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
CPU Intel A Bordo
Chipset
CPU Intel a Bordo
Formato
Micro ATX
Supporto RAM
DDR3
SATA2
2-porte
USB 2.0
5-porte
USB 3.0
1-porta
Output Video
VGA-DVI-HDMI
DESCRIZIONE
| Unique Feature | - ASRock Full Spike Protection - ASRock Cloud |
| CPU | - Intel® Quad-Core Processor J1900 (2 GHz) |
| Memory | - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L DIMM Slots - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one DIMM module is installed, please install it into DDR3_A1. |
| BIOS | - 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 Compliant wake up events - Supports jumperfree - SMBIOS 2.7 Support |
| Audio, Video and Networking | |
| Graphics | - Intel® 7th generation (Gen 7) graphics - DirectX 11.0, Pixel Shader 5.0 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode) - 2 x PCI Express 2.0 x1 Slots |
| Storage | - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | - 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Rear Panel I/O | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and BIOS | Software - ASRock A-Tuning - ASRock APP Shop - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Supports CPU Fanless - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - Micro ATX Form Factor - All Solid Capacitor design - High Density Glass Fabric PCB |
| OS | - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
