DESCRIZIONE

• Processore
  1. Support for 7th/6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  2. * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
  3. La Cache L3 varia da CPU a CPU
  4. Please refer "CPU Support List" for more information
• Chipset
  1. Intel® Z170 Express Chipset
• Memoria
  1. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  3. Architettura di memoria a doppio canale
  4. Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  5. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Supporta le memorie dotate di Profilo XMP

  *Please refer "Memory Support List" for more information
• Grafica integrata
  Integrated Graphics Processor - Intel® HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  2. * Support for DisplayPort 1.2 version.

  Integrated Graphics Processor+MegaChips MCDP2800 chip:

  1. 1 x HDMI 2.0 port
  2. Requires the latest Intel® Graphic Driver from GIGABYTE website.

  Maximum shared memory of 1024 MB
• Audio
  1. Audio ad alta definizione
  2. Supporta uscite S/PDIF
  3. Support for Sound Blaster Recon3Di
  4. 2/5.1-channel
  5. Creative® Sound Core 3D chip
  6. TI Burr Brown® OPA2134 operational amplifier
• LAN
  1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
  2. 1 x Killer™ E2400 LAN chip (10/100/1000 Mbit) (LAN2)

  *Teaming is not supported.
• Slot di Espansione
  1. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
  2. 1 Slot PCI Express 16X,
     operante a 16X

     *Per migliori Performance, se solo una Scheda Video PCI è installata,
     assicurati che questi sia inserita in uno Slot PCI Express 16X.
  3. 1 Slot PCI Express 16X, operante a 8X
     * Lo Slot PCI Express 8X condivide la banda con lo slot PCI Express 16X, ragion per cui quando lo slot da 8X è in uso quello da 16X lavora a 8X.
  4. * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
  5. 3 x Slot PCI Express
  6. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Tecnologia Multi GPU
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
• Interfaccia di storage
  Chipset:

  1. 2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. 3 x SATA Express connectors
  5. *Refer to "1-10 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.

  ASMedia® ASM1061 chip:

  1. 2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode only
• USB
  Chipset:

  1. 4 x USB 2.0/1.1 ports (available through the internal USB headers)
  2. 5 x USB 3.0/2.0 ports on the back panel

  Chipset + Intel® USB 3.1 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel

  Chipset+Renesas® USB 3.0 Hub:

  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
• Connettori Interni I/O
  1. 1 Connettore di Alimentazione ATX ad 8-pin
  2. 3 x system fan headers
  3. 1 Connettore per Ventola della CPU
  4. 1 Connettore per Pannello Frontale
  5. 1 x Pulsante di accensione
  6. 1 x Pulsante di Reset
  7. 1 Connettore di Alimentazione ATX a 24-pin
  8. 2 x USB 3.0/2.0 headers
  9. 1 Connettore per uscite Audio Frontali
  10. 2 x Connettori USB 2.0/1.1
  11. 1 Porta seriale
  12. 1 x BIOS switch
  13. 8 x SATA 6Gb/s connectors
  14. 1 x Clear CMOS jumper
  15. Punti di lettura delle Tensioni
  16. 1 x Clear CMOS button
  17. 1 x Trusted Platform Module (TPM) header
  18. 1 x water cooling fan header (CPU_OPT)
  19. 1 x audio gain control switch
  20. 1 x I/O shield audio LED power connector
  21. 2 x M.2 Socket 3 connectors
  22. 3 x SATA Express connectors
  23. 1 x ECO button
  24. 1 x OC button
• Pannello Posteriore I/O
  1. 1 x USB Type-C™ Port, with USB 3.1 support
  2. 5 x USB 3.0/2.0 ports
  3. 1 x optical S/PDIF Out connector
  4. 1 x USB 3.1 Type-A port (red)
  5. 1 Porta HDMI
  6. 1 x DisplayPort
  7. 2 x RJ-45 ports
  8. 1 Connessione per Mouse e Tastiera PS/2
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
• I/O Controller
  1. iTE® I/O Controller Chip
• Monitoraggio H/W
  1. Rilevamento dei voltaggi del sistema
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/CPU OPT/System fan fail warning
  5. CPU/CPU OPT/System fan speed control
  6. * Whether the fan speed control function is supported will depend on the cooler you install.
  7. CPU/System/Chipset overheating warning
• BIOS
  1. Support for DualBIOS™
  2. 2 x 128 Mbit flash
  3. Use of licensed AMI UEFI BIOS
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Altre Caratteristiche
  1. Supporta il Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
  4. Support for Smart Switch
  5. * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  6. Auto Green
  7. Support for Cloud Station
  8. EasyTune
  9. USB Blocker
  10. Smart TimeLock
  11. Fast Boot
  12. System Information Viewer
  13. Ambient LED
  14. 3D OSD
  15. Smart Keyboard
  16. Smart Backup
  17. Easy RAID
• Software in Bundle
  1. Intel® Smart Response Technology
  2. Norton® Internet Security (OEM version)
• Sistema Operativo
  1. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  2. Windows® 10 64-bit (for 7th Generation Intel® Processors)
  3. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
• Caratteristiche Fisiche
  1. ATX Form Factor; 30.5cm x 24.4cm
• Box Contents
  1. Motherboard driver disk
  2. I/O Shield
  3. User's Manual
  4. Quick Installation Guide
  5. Four SATA cables
  6. One 2-Way SLI bridge connector
  7. One G Connector
  8. One pack of back I/O dust covers

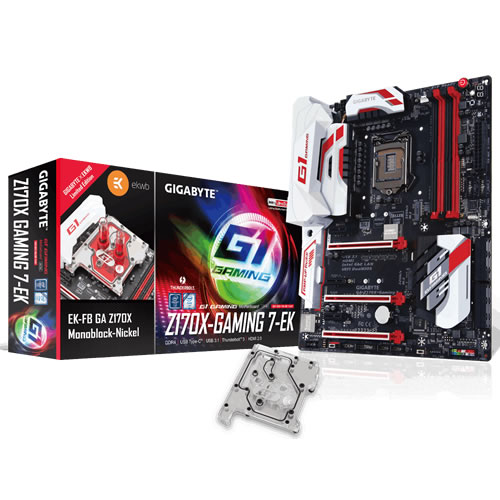

  9. GA-Z170X-Gaming 7 motherboard
