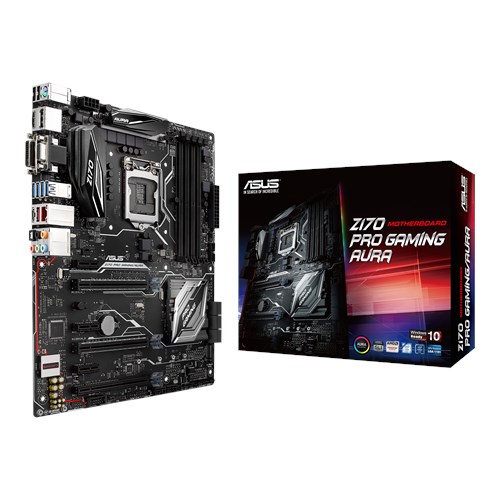

Scheda Madre ASUS Z170 Pro Gaming/AURA 90MB0S00-M0EAY0
Scheda Madre ASUS Z170 Pro Gaming/AURA Socket 1151 Chipset Intel Z170 DDR4 ATX
ID: 2511
MODELLO: 90MB0S00-M0EAY0
NOME COMMERCIALE: Scheda Madre ASUS Z170 Pro Gaming/AURA
EAN: 4712900467598
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 777
Recensioni 0
Rating 0 di 5
SOSPESO
€
157.74
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel Z170
Formato
ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
USB 2.0
+ 6-porte
USB 3.0
6-porte
USB 3.1
Type-A + Type-C
Output Video
VGA-DVI-HDMI-DP
DESCRIZIONE
- CPU
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. - Chipset
Intel® Z170
- Memoria
4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. - Grafica
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Supporto Multi-GPU
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology - Slot di Espansione
2 x PCIe 3.0/2.0 x16 ()
1 x PCIe 2.0 x16
3 x PCIe 3.0/2.0 x1 - Storage
Intel® H170 chipset :
1 x M.2 Socket 3, with M key, type 2242/2280 storage devices support (both SATA & PCIE mode)*1
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family
Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family - LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST IV
Anti-surge LANGuard - Audio
SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II - Porte USB
ASMedia® USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
ASMedia® USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, , Type-C, Reversible)
Intel® Z170 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z170 chipset :
8 x USB port(s) (2 at back panel, black, 6 at mid-board) - Caratteristiche Speciali
ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS Hybrid Processor - TurboV EVO :
- Auto Tuning
- TurboV
- GPU Boost
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Media Streamer
RAMCache - Operating System Support
Windows® 10 64bit
Windows® 8.1 64bit
Windows® 7 32bit/64bit - Porte I/O Posteriori
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 ()
1 x USB 3.1
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s) - I/O Interne
1 x USB 3.0 connector(s) support(s) additional 0 USB 3.0 port(s) (19-pin, moss green)
3 x USB 2.0 connector(s) support(s) additional 0 USB 2.0 port(s)
1 x M.2 Socket 3
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (0 x 4 -pin)
1 x CPU OPT Fan connector(s) (0 x 4 -pin)
1 x Chassis Fan connector(s) (0 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector - Accessori
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x CPU installation tool
1 x Supporting DVD
0 x SLI bridge(s)
1 x 0 in 1 Cable Label (s)
0 x 3D printing mount package - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information - Gestibilità
WfM 2.0, DMI 3.0, WOL by PME, PXE
- Disco di Supporto
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version) - Dimensioni Scheda
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
