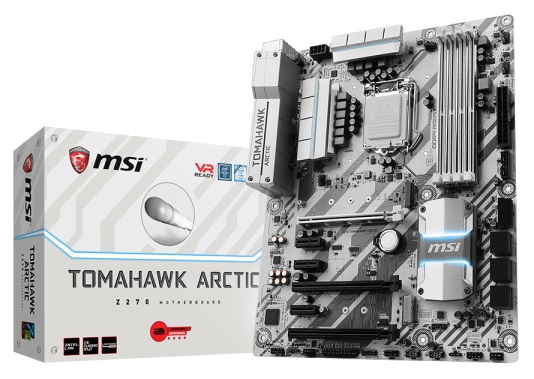

Scheda Madre MSI Z270 TOMAHAWK ARCTIC - 7A68-005R

Scheda Madre MSI Z270 TOMAHAWK ARCTIC Socket Intel 1151 Chipset Intel Z270 DDR4 ATX

ID: 2503

MODELLO: 7A68-005R

NOME COMMERCIALE: Scheda Madre Z270 TOMAHAWK ARCTIC

EAN: 4719072496234

CONDIZIONE: Nuovo

RECESSO: Fino a 14 giorni (politica di recesso )

GARANZIA:

Fino a 24 mesi (condizioni di garanzia )

Visualizzazioni 1011

Recensioni 0

Rating 0 di 5

SOSPESO

Momentaneamente non disponibile

€ 142.28

Costo spedizione: € 9.00

Inserisci nel carrello

TAG

Tecnologia

Intel

Socket

Intel 1151

Chipset

Intel Z270

Formato

ATX

Supporto RAM

DDR4

SATA3

6-porte

Ultra M.2

M.2 Socket

USB 2.0

6-porte

USB 3.0

+ 6-porte

USB 3.1

Type-A + Type-C

Output Video

DVI-HDMI

DESCRIZIONE

CPU

• Supports 6th/ 7th Gen Intel^® Core™ i3/i5/i7 processors, and Intel^® Pentium^® and Celeron^® processors for Socket LGA1151

Chipset

• Intel^® Z270 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
- 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
• Dual channel memory architecture
• Supports Intel^® Extreme Memory Profile (XMP)**

Slots

• 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
• 3 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x HDMI^™ port, supports a maximum resolution of 4096x2160@30Hz(7th Gen CPU), 4096x2160@24Hz(6th Gen CPU), 2560x1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Multi-GPU

• Supports 2-Way AMD^® CrossFire^™ Technology

Storage

• Intel^® Z270 Chipset
• 6 x SATA 6Gb/s ports*
• 2 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Supports Intel^® Optane™ Memory Ready for all M.2 slots
• Supports Intel® Smart Response Technology for Intel Core™ processors

RAID

• Intel^® Z270 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID1 for M.2 PCIe storage devices*

USB

• ASMedia^® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• Intel^® Z270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Realtek^® ALC892 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

• 1 x Intel^® I219-V Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector

Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting

• 9 mounting holes
