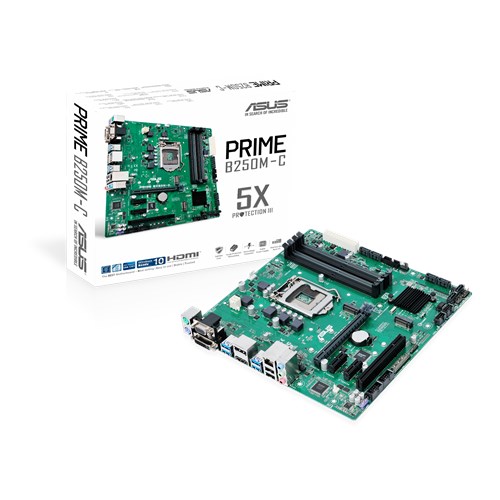

Scheda Madre Asus PRIME B250M-C 90MB0SQ0-M0EAYM
Scheda Madre Asus PRIME B250M-C Socket Intel 1151 Chipset Intel B250 DDR4 mATX
ID: 2475
MODELLO: 90MB0SQ0-M0EAYM
NOME COMMERCIALE: Scheda Madre Asus PRIME B250M-C
EAN: 4712900595796
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1234
Recensioni 0
Rating 0 di 5
SOSPESO
€
92.52
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel B250
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
USB 2.0
6-porte
USB 3.0
6-porte
Output Video
VGA-DVI-HDMI-DP
DESCRIZIONE
- CPU
Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. - Chipset
Intel® B250
- Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor. - Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously - Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI - Storage
Intel® B250 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready *4 - LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking - USB Ports
Intel® B250 Chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B250 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board) - Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM - Operating System Support
Windows® 10 , 64bit
Windows® 8.1 , 64bit *2
Windows® 7 , 32bit/64bit *2 - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s) - Internal I/O Ports
1 x MONO out header *3
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x 14-1 pin TPM connector - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit, BIOS value edit
- Manageability
WfM 2.0, DMI 3.0, WOL, WOR,PXE
- Support Disc
Drivers
- Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
