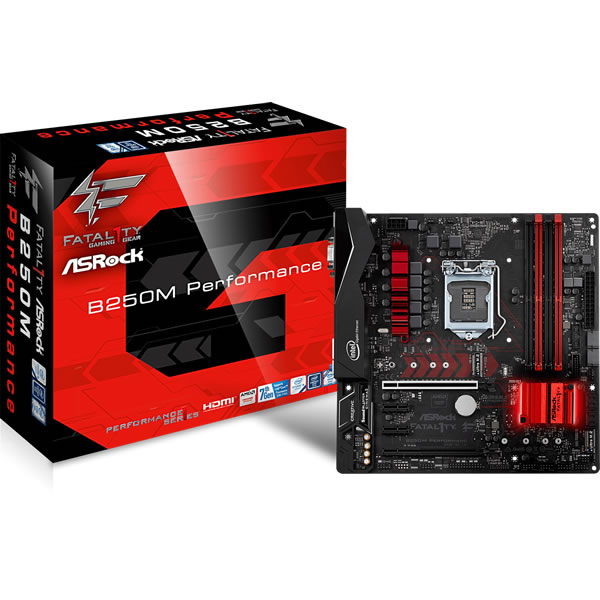

Scheda Madre Asrock Fatal1ty B250M Performance 90-MXB4R0-A0UAYZ

Scheda Madre Asrock Fatal1ty B250M Performance 90-MXB4R0-A0UAYZ

Scheda Madre Asrock Fatal1ty B250M Performance Socket Intel 1151 Chipset Intel B250 DDR4 Micro-ATX

ID: 2472
MODELLO: 90-MXB4R0-A0UAYZ
NOME COMMERCIALE: Scheda Madre Asrock Fatal1ty B250M Performanc
EAN: 4717677332513
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 783
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Asrock Fatal1ty B250M Performance 90-MXB4R0-A0UAYZ
€ 107.17
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel B250
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
USB 3.0
6-porte
USB 3.1
Type-A + Type-C
Output Video
VGA-DVI-HDMI

DESCRIZIONE

  • Gaming Armor
    Memory
    - 15μ Gold Contact in DIMM Slots
    VGA Card
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    Internet
    - Intel® LAN
    Audio
    - Creative Sound Blaster™ Cinema 3
  • Unique Feature
    ASRock Super Alloy
    - Premium 50A Power Choke
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Steel Slots
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop
  • CPU
    - Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
    - Digi Power design
    - 6 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
  • Chipset
    - Intel® B250
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 2400/2133 non-ECC, un-buffered memory*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB**
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
  • Graphics
    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics
    - Gen9 LP, DX11.3, DX12
    - HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU)
    - HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
    - Max. shared memory 1024MB**
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

    *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **The size of maximum shared memory may vary from different operating systems.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    - Premium Blu-ray Audio support
    - Supports Surge Protection (ASRock Full Spike Protection)
    - Nichicon Fine Gold Series Audio Caps
    - Supports Creative Sound Blaster™ Cinema 3

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
    - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    - 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **If PCIE2 slot or PCIE3 slot is occupied, the PCIe-type M.2 device on M2_1 socket will run at Gen3 x2 (16 Gb/s).
    Supports Intel® Optane™ Technology (M2_2 only)
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x Print Port Header
    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x AURA RGB LED Header*
    - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)**
    - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    *Supports up to 12V/3A, 36W LED Strip.

    **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ***CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
    - 3 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock AURA RGB LED
    - ASRock Key Master
    - ASRock APP Charger
    - ASRock XFast LAN*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Crashless BIOS
    - ASRock UEFI Tech Service

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
  • Hardware Monitor
    - CPU/Chassis temperature sensing
    - CPU/Chassis Fan Tachometer
    - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU/Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • OS
    - Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)
    - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)*

    *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
    For the updated Windows® 10 driver, please visit ASRock's website for details.
  • Certifications
    - FCC, CE, WHQL
    - ErP/EuP ready (ErP/EuP ready power supply is required)
