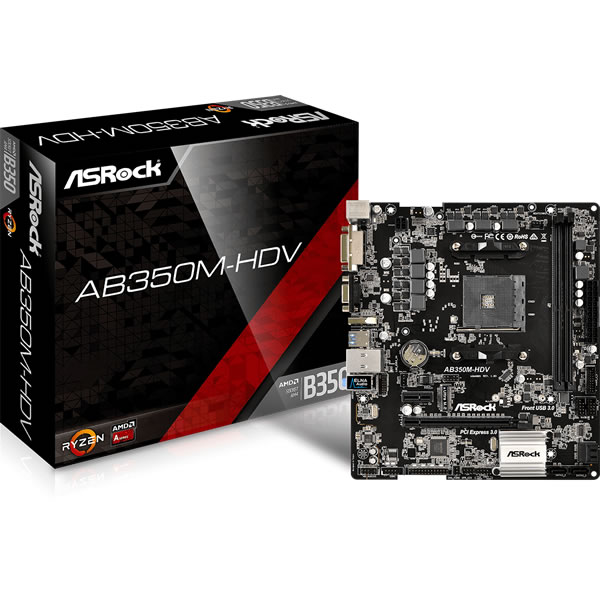

Asrock AB350M 90-MXB580-A0UAYZ
Scheda Madre Asrock AB350M Scket AM4 Chipset B350 DDR4 Micro ATX NO Video
ID: 2257
MODELLO: 90-MXB580-A0UAYZ
NOME COMMERCIALE: Asrock AB350M
EAN: 4717677333190
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 760
Recensioni 0
Rating 0 di 5
SOSPESO
€
72.28
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
AMD
Socket
AMD AM4
Chipset
AMD B350
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
4-porte
Ultra M.2
M.2 Socket
USB 3.0
+ 6-porte
Output Video
No Output Video
DESCRIZIONE
-
Unique FeatureASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
CPU- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Digi Power design
- 9 Power Phase design
- Supports 95W Air Cooling -
Chipset- AMD Promontory B350
-
Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 32GB**
- 15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock's website for more information.
Please refer to below table for DDR4 UDIMM maximum frequency support.
A-Series APUs:UDIMM Memory Slot Frequency(MHZ) A1 A2 - SR 2400 SR - 2400 - DR 2400 DR - 2400 SR SR 2400 DR DR 2400
Ryzen Series CPUs:
UDIMM Memory Slot Frequency(MHZ) A1 A2 - SR 2667 SR - 2667 - DR 2667 DR - 2667 SR SR 2667 DR DR 2667
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment -
Graphics- n/a
-
Audio- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection
- ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. -
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE -
SlotsAMD Ryzen series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
- 1 x PCI Express 2.0 x1 Slot
*Supports NVMe SSD as boot disks -
Storage- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit -
Connector- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 1 x AMD Fan LED Header
- 1 x CPU Fan Connector (4-pin)**
- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection)
*Supports up to 12V/3A, 36W LED Strip
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. -
Rear Panel I/O- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 6 x USB 3.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone -
Software and UEFISoftware
- ASRock A-Tuning
- ASRock RGB LED
- ASRock APP Charger
- ASRock XFast LAN*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket -
Hardware Monitor- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore -
Form Factor- Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
- Solid Capacitor design -
OS- Microsoft® Windows® 10 64-bit*
*For the updated Windows® 10 driver, please visit ASRock's website for details. -
Certifications- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
