Scheda Madre Gigabyte GA-H270N-WIFI

Scheda Madre Gigabyte GA-H270N-WIFI

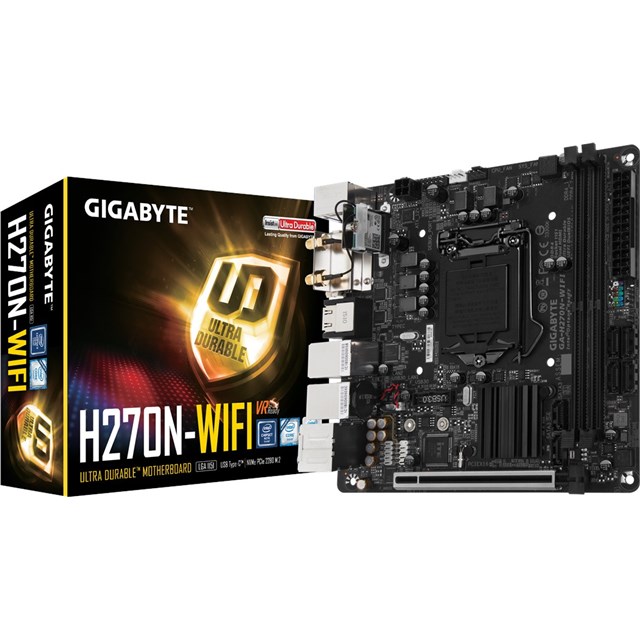

Scheda Madre Gigabyte GA-H270N-WIFI Socket LGA 1151 Chipset H270 DDR4 Mini-ITX

ID: 2019
MODELLO: GA-H270N-WIFI
NOME COMMERCIALE: Scheda Madre GA-H270N-WIFI
EAN: 4719331847340
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 1052
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte GA-H270N-WIFI
Scheda Madre Gigabyte GA-H270N-WIFI
€ 137.62
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Chipset
Intel H270
Formato
Mini ITX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
USB 2.0
2-porte
USB 3.0
6-porte
USB 3.1
Type-C
Wi-FI
Wi-Fi Ready
Output Video
DVI-HDMI

DESCRIZIONE

CPU
  1. Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® H270 Express Chipset
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2400(O.C.)* / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
    * To support 2400 MHz or XMP memory, you must install a 7th generation processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
  3. Support for up to 3 displays at the same time
  4. Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC1220 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
  3. Support for 11ac wireless standard and up to 867 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface Chipset:
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB Chipset:
  1. 2 x USB 2.0/1.1 ports available through the internal USB header
  2. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  3. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 6 x SATA 6Gb/s connectors
  4. 1 x M.2 Socket 3 connector on the back of the motherboard
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.1 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x S/PDIF Out header
  12. 1 x speaker header
  13. 1 x Clear CMOS jumper
  14. 1 x chassis intrusion header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x HDMI ports
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x DVI-D port
  5. 4 x USB 3.1 Gen 1 ports
  6. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Wireless Display
  3. Intel® Optane™ Memory Ready
  4. cFosSpeed
Operating System
  1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
  2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
