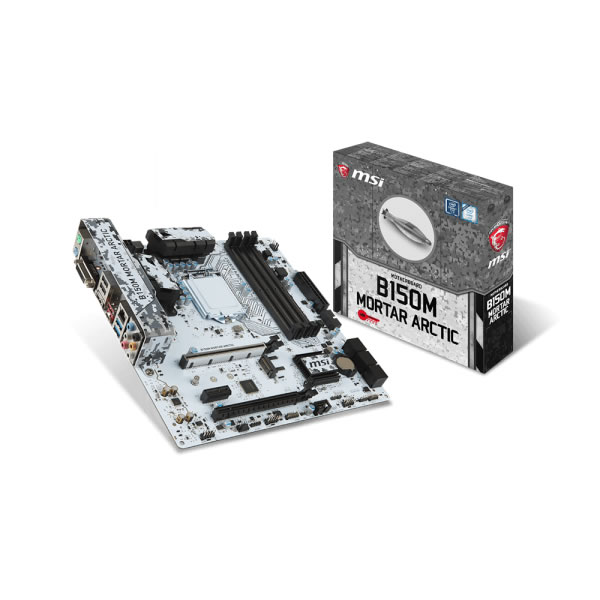

 CPU
• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
|
Chipset
• Intel® B150 Chipset
|
|
Main Memory
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz*
• Dual channel memory architecture
• Supports ECC, un-buffered memory
- ECC UDIMM memory (non-ECC mode)
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
** DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation.
|
|
Slots • 2 x PCIe 3.0 x16 slots (support x16/x4)* • 1 x PCIe 3.0 x1 slots • 1 x M.2 slot (Key E) - Supports Wi-Fi module * The PCI_E3 slot will only run PCIe 3.0 x2 speed when a M.2 SATA storage is installed in M.2 slot (M2_1), and the PCI_E3 slot will be disabled when a M.2 PCIe module is installed in M.2 (M2_1) slot.
|
|
Onboard Graphics
• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
|
|
Multi-GPU
• Supports 2-Way AMD® CrossFire™ Technology
|
|
Storage
• Intel® B150 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**
* SATA1 port will be unavailable when the M.2 SATA module is installed in M.2 slot (M2_1).
** The Turbo U.2 Host Card is not included, please purchase separately.
|
|
|
USB
• Intel® B150 Chipset
- 1 x USB 3.1 Gen1 (SuperSpeed USB) Type-C port on the back panel
- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 ports on the back panel, 2 ports available through the internal USB 3.1 Gen 1 connector)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
|
|
Audio • Realtek® ALC892 Codec • 7.1-Channel High Definition Audio
|
|
LAN
• 1 x Realtek RTL8111H Gigabit LAN controller
|
|
WLAN & Bluetooth® (Optional)
• Intel® Dual Band Wireless-AC 8260 module (optional)
- Supports M.2 (Key E) interface
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
|
|
Back Panel I/O Ports
- 1 x PS/2 mouse port
- 1 x PS/2 keyboard port
- 1 x DVI-D port
- 2 x USB 2.0 ports
- 1 x HDMI™ port
- 3 x USB 3.1 Gen1 ports
- 1 x USB 3.1 Gen1 Type-C port
- 1 x LAN (RJ45) port
- 6 x audio jacks
|
|
|
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (support additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 3 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x LED connector
|
|
Dimension
• 9.6 in. x 9.6 in. (24.38 cm x 24.38 cm) M-ATX Form Factor
|
|
Mounting
• 8 mounting holes
|
