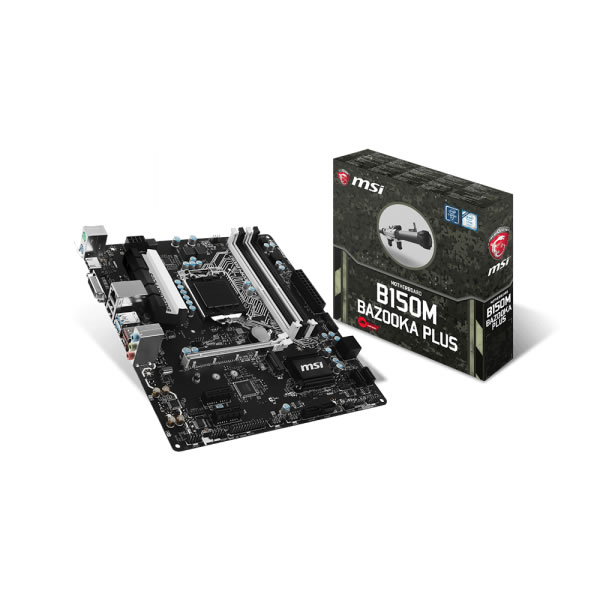

Scheda Madre MSI B150M BAZOOKA Plus 7A46-001R

Scheda Madre MSI B150M BAZOOKA Plus Socket 1151 Chipset Intel B150 DDR4 M.2 Socket USB 3.1 DVI HDMI micro-ATX

ID: 1772
MODELLO: 7A46-001R
NOME COMMERCIALE: Scheda Madre MSI B150M BAZOOKA Plus
EAN: 4719072467357
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 544
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre MSI B150M BAZOOKA Plus 7A46-001R
77.29
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel B150
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
USB 2.0
6-porte
USB 3.0
6-porte
USB 3.1
Type-A + Type-C
Output Video
DVI-HDMI

DESCRIZIONE

CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.



Chipset

• Intel® B150 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
** DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation.



Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots


Onboard Graphics

• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz



Storage

Intel® B150 Chipset
• 6 x SATA 6Gb/s ports
• 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**

* SATA1 port will be unavailable when installing the M.2 SATA module in M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.



USB

Intel® B150 Chipset
- 1 x USB 3.1 Gen1 Type-C port on the back panel
- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)



Audio

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio



LAN

• 1 x Realtek RTL8111H Gigabit LAN controller



Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x HDMI™ port
- 1 x DVI-D port
- 1 x LAN (RJ45) port
- 2 x USB 2.0 ports
- 3 x USB 3.1 Gen1 ports
- 1 x USB 3.1 Gen1 Type-C port
- 3 x audio jacks



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector



Dimension

• 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm) M-ATX Form Factor



Mounting

• 6 mounting holes






1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
