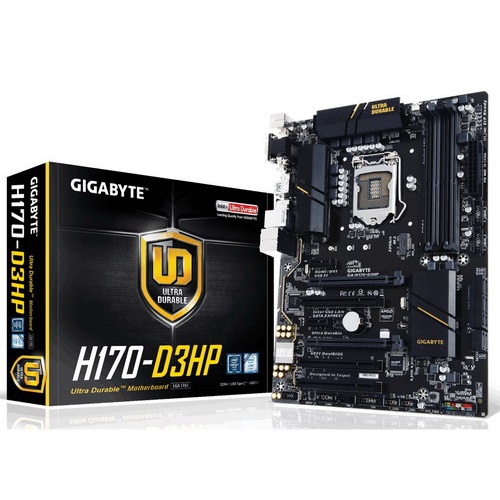

Scheda Madre Gigabyte H170-D3HP

Scheda Madre Gigabyte H170-D3HP

Scheda Madre Gigabyte H170-D3HP Socket 1151 Chipset Intel H170 DDR4 Socket M.2 USB3.0 VGA DVI HDMI ATX

ID: 1767
MODELLO: GA-H170-D3HP
NOME COMMERCIALE: Scheda Madre Gigabyte H170-D3HP
EAN: 4719331832285
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: ITALIA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 1285
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte H170-D3HP
€ 77.16
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel H170
Formato
ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
6-porte
USB 3.0
+ 6-porte
USB 3.1
Type-A + Type-C
Output Video
VGA-DVI-HDMI

DESCRIZIONE

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® H170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
  4. Support for up to 3 displays at the same time
  5. Maximum shared memory of 1024 MB
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 3 x PCI slots
Multi-Graphics Technology
  1. Support for 2-Way AMD CrossFire™ technology
Storage Interface Chipset:
  1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 2 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB Chipset:
  1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+Intel® USB 3.1 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 2 x SATA Express connectors
  5. 6 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x water cooling fan header (CPU_OPT)
  8. 3 x system fan headers
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 2 x USB 3.0/2.0 headers
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x Thunderbolt™ add-in card connector
  16. 1 x serial port header
  17. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.1 support
  6. 1 x USB 3.1 Type-A port (red)
  7. 3 x USB 3.0/2.0 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. Intel® Small Business Advantage
  4. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 22.5cm
Box Contents
  1. GA-H170-D3HP motherboard
  2. Two SATA cables
  3. Motherboard driver disk
  4. I/O Shield
  5. User's Manual
  6. One G Connector
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
