DESCRIZIONE

• CPU
  Intel® for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H110
• Memory
  4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
  * Due to Intel® chipset limitation, this motherboard can only support single-side memories when four modules are installed and they will run at the maximum transfer rate of DDR3 1066 MHz.
  * To prevent system instability, either install DDR3L DIMMs or DDR3 DIMMs with voltage lower than 1.5V.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-I ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-I with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® Quick Sync Video, Clear Video HD Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x1 (x16 mode)
  1 x PCIe 2.0 x1
  2 x PCI
• Storage
  Intel® H110 chipset :
  4 x SATA 6Gb/s port(s), gray,
• LAN
  Realtek® 8111F, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *¹
  - Supports : Jack-detection, Front Panel Jack-retasking
• USB Ports
  Intel® H110 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® H110 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  - ASUS ESD Guards - Electrostatic discharge protection
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - Mobo Connect
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *²
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-I
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0 (blue)
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x MONO out header
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x LPT header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x 14-1 pin TPM connector

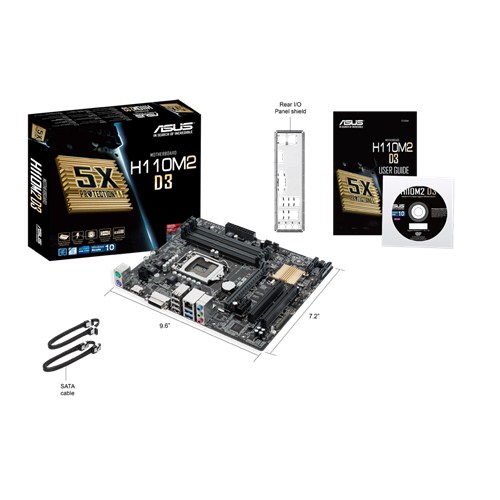

• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, F11 EZ Tuning Wizard, F6 Qfan Control
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)
• Form Factor
  uATX Form Factor
  9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
