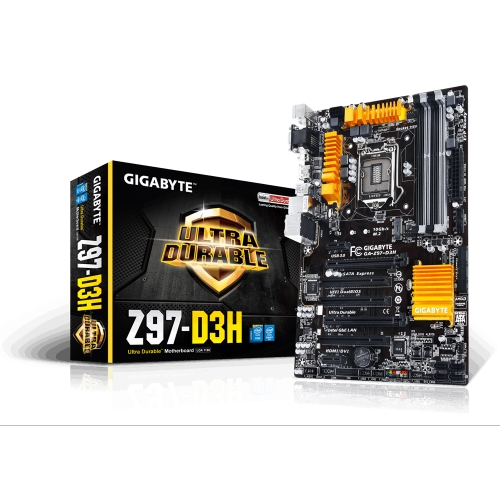

Scheda Madre Gigabyte GA-Z97-D3H

Scheda Madre Gigabyte GA-Z97-D3H

Scheda Madre Gigabyte GA-Z97-D3H Socket Intel 1150 Chipset Z97 DDR3 SATA Express M.2 Socket ATX

ID: 1224
MODELLO: GA-Z97-D3H
NOME COMMERCIALE: Scheda madre Gigabyte GA-Z97-D3H
EAN: 4719331816643
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 1162
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte GA-Z97-D3H
€ 118.90
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 1150
Chipset
Intel Z97
Formato
ATX
Supporto RAM
DDR3
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
+ 6-porte
USB 3.0
6-porte
Output Video
VGA-DVI-HDMI

DESCRIZIONE

Gigabyte GA-Z97-D3H

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z97 Express Chipset
Memory
  1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor - Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
    * Support for HDMI 1.4a version.
  4. Support for up to 3 displays at the same time
  5. Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
      * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)

    1. 2 x PCI Express x1 slots
      (The PCIEX4 and the PCI Express x1 slots conform to PCI Express 2.0 standard.)

  1. 3 x PCI slots
Multi-Graphics Technology
  1. Support for AMD CrossFire™ technology
Storage Interface Chipset:
  1. 1 x M.2 PCIe connector
    (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)
  2. 1 x SATA Express connector
  3. 6 x SATA 6Gb/s connectors
    (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB Chipset:
  1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 PCIe connector
  4. 1 x SATA Express connector
  5. 6 x SATA 6Gb/s connectors
  6. 1 x USB 3.0/2.0 header
  7. 3 x USB 2.0/1.1 headers
  8. 1 x CPU fan header
  9. 1 x water cooling fan header (CPU_OPT)
  10. 3 x system fan headers
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x serial port header
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x S/PDIF Out header
  16. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.0/2.0 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    Fast Boot
    ON/OFF Charge
    Smart TimeLock
    Smart Recovery 2
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Smart Response Technology
  5. cFosSpeed
Operating System
  1. Support for Windows 10/8.1/8/7
Form Factor
  1. ATX Form Factor; 30.5cm x 21.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
