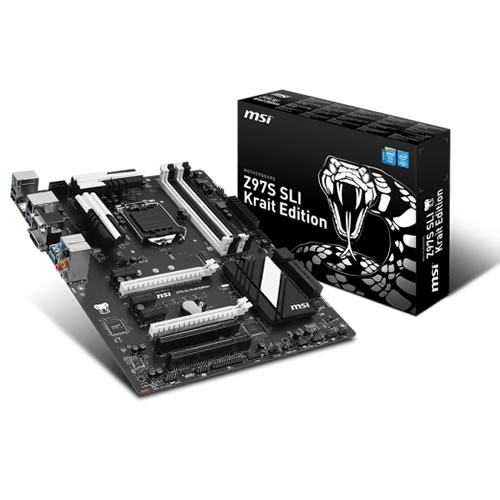

Scheda Madre MSI Z97S SLI KRAIT EDITION
Scheda Madre MSI Z97S SLI KRAIT EDITION Socket 1150 Chipset Z97 DDR3 SATA Express M.2 Socket RAID ATX
ID: 1223
MODELLO: 7922-004R
NOME COMMERCIALE: Scheda madre MSI Z97S SLI KRAIT EDITION
EAN: 4719072368982
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 963
Recensioni 0
Rating 0 di 5
TAG
DESCRIZIONE
MSI Z97S SLI Krait
|
|
 |
|
|
|
|
|
|
|
• 2 x PCIe 3.0 x16 slots(PCI_E2 & PCI_E5) |
|
|
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz/ 2560x1600@60 Hz
|
|
|
• Supports 2-Way NVIDIA® SLI™ Technology |
|
|
• 6 x SATA 6Gb/s ports (2 x ports reserved for SATA Express port)* - SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10 • 1 x SATA Express port*
• 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen2 x2 & SATA mode**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module - M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.
• Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology***
* The SATA Express port or SATA5 and SATA6 ports will be unavailable when installing a module in the M.2 port.
** Intel RST does not support PCIe M.2 SSD with Legacy ROM.
*** Supports Intel Core processors on Windows 7 and Windows 8/ 8.
|
|
|
• Intel® Z97 Express Chipset - 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
|
|
|
|
|
|
|
|
|
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x SATA E xpress port
- 1 x M.2 port
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
|
|
|
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 ports
- 1 x HDMI port
- 1 x LAN (RJ45) port
- 4 x USB 3.0 ports
- 1 x VGA port
- 1 x DVI-D port
- 6 x Audio jacks
|
|
|
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. |
|
|
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
|
|
• 9 mounting holes |
