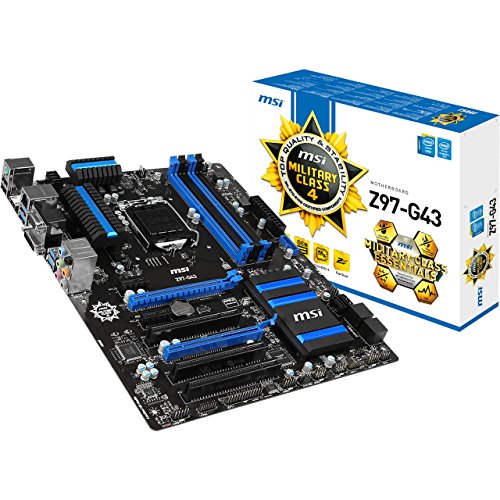

 CPU
• Supports 4th and 5th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1150
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
Chipset
• Intel® Z97 Express Chipset
|
|
|
Main Memory
• Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz DRAM, 32GB Max
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Supports non-ECC, un-buffered memory
|
|
Slots
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 2.0 x16 slot (PCI_E4)*
- Supports up to PCIe 2.0 x4 speed.
• 2 x PCIe 2.0 x1 slots(PCI_E1, PCI_E3)*
• 3 x PCI slots
* The PCIe 2.0 x16 (PCI_E4) slot will support PCIe 2.0 x2 speed when any PCIe 2.0 x1 slot (PCI_E1/ PCI_E3) has been installed.
|
|
|
Onboard Graphics
• 1 x VGA port, supports the maximum resolution of 1920x1200 @60Hz
• 1 x HDMI® port, supports the maximum resolutions of 4096x2160 @24 Hz / 2560x1600 @60 Hz
• 1 x DVI-D port, supports the maximum resolution of 1920x1200 @60Hz
|
|
|
Multi-GPU Support
• Supports 2-Way AMD CrossFire™ Technology*
* Supports Windows 7 and Windows 8/ 8.1.
|
|
On-Board SATA
• SATAIII controller integrated in Intel® Z97 chipset
- Up to 6Gb/s transfer speed.
- Supports six SATA ports (SATA1~6) by Z97
• RAID
- SATA1~6 ports support Intel Rapid Storage Technology enterprise (RAID 0/1/5/10) by Intel Z97
- Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8/ 8.1.
|
|
|
USB
• 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
|
|
Audio
• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
|
|
LAN
• 1 x Realtek® 8111E Gigabit LAN controller
|
|
Internal I/O Connectors
- 1 x ATX 24-Pin power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Trusted Platform Module (TPM) connector
- 1 x Serial port connector
- 1 x Front Panel Audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper
|
|
Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo port
- 2 x USB 2.0 ports
- 4 x USB 3.0 ports
- 1 x RJ45 LAN jack
- 6 x audio jacks
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port
This platform supports dual-display and triple-display function
| |
VGA+DVI-D
|
DVI-D+HDMI
|
HDMI+VGA
|
HDMI+VGA+DVI-D
|
|
Extend mode
(Extend the desktop to
the other monitors)
|
◯
|
◯
|
◯
|
◯ |
|
Clone mode
(Monitors have the same
screen)
|
◯
|
◯
|
◯
|
◯
|
|
|
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
|
|
Dimension
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
|
