Dissipatore CPU Enermax ETS-T40F-BK

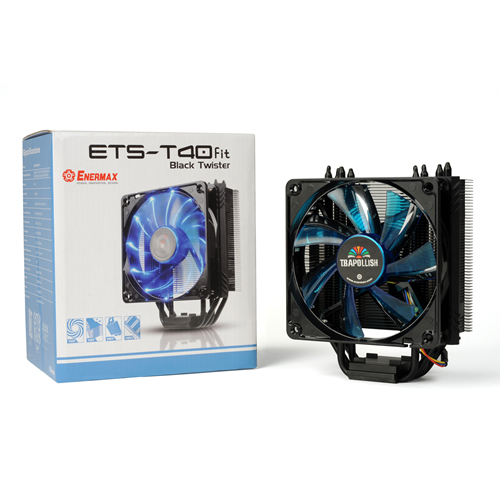

Dissipatore CPU Cooler Enermax ETS-T40F-BK Black Twister Led Blue

ID: 1203
MODELLO: ETS-T40F-BK
NOME COMMERCIALE: Enermax ETS-T40F-BK
EAN: 4713157721921
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 730
Recensioni 0
Rating 0 di 5
SOSPESO
Dissipatore CPU Enermax ETS-T40F-BK
37.91
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Categoria
Dissipatori CPU
Tipologia
Dissipatori ad Aria
N. Ventole
N. 1 Ventola
Ventole RPM
~1600RPM
Dimensione Ventole
120X120X25
Colore Ventole
Nero
Compatibilità
Intel/AMD

DESCRIZIONE

CPU Cooler Enermax ETS-T40F



Product Introduction

The ETS-T40F series is suitable to all kind of systems thanks to its space-saving design and has a perfect balance between cooling performance and noise level. The slim heatsink doesn’t interfere with the RAM slots and allows the installation of high end modules.
Innovative technologies such as the Vortex Generator Flow (VGF) and the Vacuum Effect Flow (VEF) ensure optimum airflow and efficient cooling. The ETS-T40F coolers can support a TDP up to 200 watts. Enermax offers three versions with different Twister-fans: the ETS T40F-TB with the popular TB Silence PWM 12cm fan, the ETS-T40F-BK with the blue LED fan TB Apollish PWM 12cm fan and finally the ETS-T40F-RF with the new 14-cm-winglet fan.

Heatsink

  • Full RAM Compatibility
    Due to its slim construction, the heatsink does not block any memory slot at the mainboard.
  • Strong Cooling Performance with 200W TDP
    Proven heatsink design based on the successful ETS-T40 series with extremely low thermal resistance (just 0.117°C/W) and up to 200W TDP.
  • Vortex Generator Flow (VGF) & Vacuum Effect Flow (VEF)
    Efficient cooling thanks to innovative air stream conduction: Openings and spoilers allow for a quick dissipation of warm air and an effective air circulation.
  • Heat-Pipe Direct Touch
    The four performance-capable 6mm heat pipes rest directly on the CPU and improve the heat transfer process between the processor and heatsink.

Fan

  • Silent & Durable Twister Bearing Fans
    ENERMAX delivers the ETS-T40F coolers with reliable Twister fans. The patented bearing technology ensures a continuously silent operation with 160,000 hours MTBF.
  • Flexible PWM Control with Wide RPM Range
    Comfortable PWM fan speed control for a perfect balance between cooling performance and noise generation according to the individual system requirements.
  • Dual Fan Option
    Additional clips included for the installation of an optional second fan.

Installation

  • Performance-Capable Thermal Grease
    ENERMAX provides a tube of high-quality Dow Corning® thermal grease (TC-5121) for an optimal heat transfer between CPU and heatsink.
  • Universal and Easy Mounting
    The user-friendly mounting system supports the latest Intel® and AMD® platforms: Intel® 775/1150/1151/1155/1156/1366/2011/2011-3 and AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+.

Special Features

  • Quiet Cooling with the Most Popular Silent Fan & RPM Adapter | ETS-T40F-TB
    The included T.B.Silence PWM 12cm fan ensures an effective cooling with low noise generation. Additional RPM adapter to reduce the speed by 50% and meet the requirements of ultra-silent PCs.
  • High Performance with Low-Speed Fan | ETS-T40F-RF
    The included 14cm Winglet PWM fan achieves a high air flow rate with low a speed of max. 1,200 RPM. The special winglet shape of the blades reduces noisy air turbulences. First choice for silent PC systems.
  • Patented LED Technology for Striking Effects | ETS-T40F-BK
    The included T.B.Apollish PWM 12cm fan is equipped with the patented circular LED light from ENERMAX. 12 diodes create outstanding LED effects and an intensive blue light.
  • Thermal Conductive Coating | ETS-T40F-BK
    Black high-tech coating for most effective heat dissipation and better cooling performance.
  • 1-Clip Fan Bracket | ETS-T40F-TB / ETS-T40F-BK
    Secure fan mounting with robust 1-Clip bracket.
  • Metal Spring Clip | ETS-T40-RF
    Quick and tool-less fan mounting with metal spring clip.

Specifications

Models ETS-T40F-TB ETS-T40F-BK ETS-T40F-RF
Compatible Sockets Intel® LGA 775/1150/1151/1155/1156/1366/2011/2011-3*
AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Overall Dimensions (mm) L 126  x W 67.9 x H 161.7 L 140 x W 67 x H 165.5
Heat Sink Dimensions (mm) L 126 x W 41 x H 161.7 L 126 x W 41 x H 161.7
Heat Sink Coating no coating black no coating
Number / Thickness of Heat Pipes 4 x Ø 6mm
Thermal Resistance (°C/W) 0,1
Thermal Design Power (TDP) 200W
Weight (without fan) 460g
Material Copper Heat Pipes / Aluminium Fins
Thermal Grease Dow Corning® TC-5121

Fan
Fan Model T.B.Silence PWM T.B.Apollish PWM Winglet PWM
Fan Dimensions (mm) 120 x 120 x 25 140 x 140 x 26
Bearing Type Twister Bearing Technology (patented)
Fan Speed (RPM) 800 – 1,800 / 400 - 900** 800 – 1,800 500 – 1,200
Air Flow (m3/h) 63.83 - 147.30 / 36.04 - 81.08** 56.51 - 129.09 42.20 - 111.40
Air Flow (CFM) 37.57 - 86.70 / 21.21 - 47.72** 33.26 – 75.98 24.83 – 65.56
Static Pressure (mm-H2O) 0.72 - 2.41 / 0.31 - 1.31** 0.97 – 2.28 0.24 – 1.55
Noise Level (dB(A)) 10 - 21 / 8 - 11** 16 - 26 10 - 19
Rated Voltage (V) 12
MTBF 160,000 hours
LED no LEDs Patented circular LED light
with 12 blue diodes
no LEDs
Fan connector 4 pin PWM
Fan Mounting Plastic brackets Metal brackets



* except server mainboards with LGA 2011-3
** ETS-T40F-TB with included RPM adaptor
