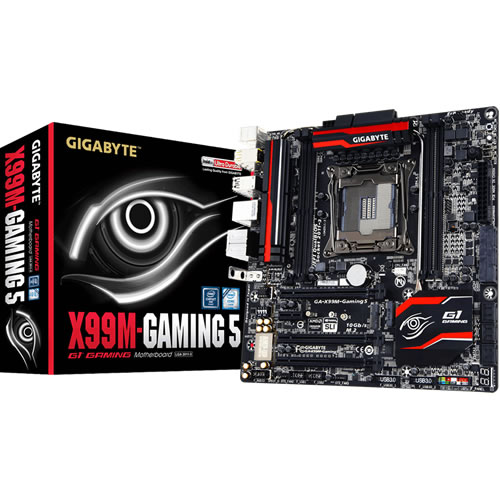

Scheda Madre Gigabyte GA-X99M

Scheda Madre Gigabyte GA-X99M

Scheda Madre Gigabyte GA-X99M-GAMING 5 Socket Intel 2011-3 Chipset X99 DDR4 SATA Express M.2 Socket RAID Killer E2400 Gaming Networking Micro-ATX

ID: 1195
MODELLO: GA-X99M-GAMING 5
NOME COMMERCIALE: Scheda Madre Gigabyte GA-X99M
EAN: 4719331845278
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
GARANZIA: EUROPA Fino a 24 mesi (condizioni di garanzia )
Visualizzazioni 1155
Recensioni 0
Rating 0 di 5
SOSPESO
Scheda Madre Gigabyte GA-X99M
€ 221.88
Costo spedizione: € 9.00
Inserisci nel carrello
Quantità

TAG

Tecnologia
Intel
Socket
Intel 2011-3
Chipset
Intel X99
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
4-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
+ 6-porte
USB 3.0
4-porte
Output Video
No Output Video

DESCRIZIONE



CPU
  1. Support for Intel® Core™ i7 processors in the LGA2011-3 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® X99 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. 4 channel memory architecture
  3. Support for DDR4 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
  6. Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)
(Please refer "Memory Support List" for more information.)
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Killer E2400 chip (10/100/1000 Mbit)
Expansion Slots
    1. 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.

    1. 1 x PCI Express x16 slot, running at x8 (PCIE_3)
      * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
      (All PCI Express x16 slots conform to PCI Express 3.0 standard.)

    1. 1 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

  1. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
Storage Interface Chipset:
  1. 1 x M.2 PCIe connector
    (Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
  2. 1 x SATA Express connector
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
    (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
Chipset:
  1. 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
    (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA3 0~3 ports.)
USB Chipset:
  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
  2. 10 x USB 2.0/1.1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® USB 3.0 Hub:
  1. 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 1 x SATA Express connector
  5. 10 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x water cooling fan header (CPU_OPT)
  8. 3 x system fan headers
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 2 x USB 3.0/2.0 headers
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Clear CMOS jumper
  15. 1 x power button
  16. 1 x reset button
  17. 1 x Clear CMOS button
  18. 1 x audio gain control switch
  19. 2 x BIOS switches
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 4 x USB 3.0/2.0 ports
  4. 6 x USB 2.0/1.1 ports
  5. 1 x RJ-45 port
  6. 1 x optical S/PDIF Out connector
  7. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  8. 2 x Wi-Fi antenna connector holes
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    EZ Setup
    Fast Boot
    Game Controller
    Cloud Station
    ON/OFF Charge
    Smart TimeLock
    Smart Recovery 2
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
Operating System
  1. Support for Windows 10/8.1/8/7
Form Factor
  1. Micro-ATX Form Factor; 24.4cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
