| Processore |
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
- La Cache L3 varia da CPU a CPU
- Please refer "CPU Support List" for more information
|
| Chipset |
- Intel® Z170 Express Chipset
|
| Memoria |
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Architettura di memoria a doppio canale
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
- Supporta le memorie dotate di Profilo XMP
- Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
*Please refer "Memory Support List" for more information
|
| Grafica integrata |
Integrated Graphics Processor+MegaChips MCDP2800 chip:
- 1 x HDMI 2.0 port
- Requires the latest Intel® Graphic Driver from GIGABYTE website.
Maximum shared memory of 512 MB
|
| Audio |
- Support for Sound Blaster ZxRi
- Audio ad alta definizione
- Supporta uscite S/PDIF
- 2/5.1-channel
- Creative® Sound Core 3D chip
- 2 x JRC NJM2114 and 1 x TI Burr Brown® OPA2134 operational amplifiers
|
| LAN |
- 2 x Killer E2400 chips (10/100/1000 Mbit)
*Teaming is not supported.
|
| Wireless Communication module |
- Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- Support for 11ac wireless standard and up to 867 Mbps data rate.
- Killer™ Wireless-AC 1535
- Bluetooth 4.1
- * Actual data rate may vary depending on environment and equipment.
|
| Slot di Espansione |
- 3 x PCI Express 2.0 x1 slots
- 2 x PCI Express 3.0 x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
- *For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
- 2 x PCI Express 3.0 x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
- *The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
|
| Tecnologia Multi GPU |
- Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
- Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
|
| Interfaccia di storage |
Chipset:
- *Refer to "1-13 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
- 2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
- 3 x SATA Express connectors
- 6 x SATA 6Gb/s connectors (SATA3 0~5)
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
2 x ASMedia® ASM1061 chips:
- 4 x SATA 6Gb/s connectors (SATA3 6~7, GSATA3 8~9), supporting AHCI mode only
|
| USB |
Chipset:
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- 4 x USB 3.0/2.0 ports on the back panel
Chipset + Intel® USB 3.1 Controller:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 support
- 1 x USB 3.1 Type-A port (red) on the back panel
Chipset + 2 Renesas® USB 3.0 Hubs:
- 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
|
| Connettori Interni I/O |
- 1 x Connettore di alimentazione PCIe
- 1 Connettore di Alimentazione ATX ad 8-pin
- 1 Connettore per Ventola della CPU
- 1 Connettore per Pannello Frontale
- 1 x Pulsante di accensione
- 1 x Pulsante di Reset
- 1 Connettore di Alimentazione ATX a 24-pin
- 2 x USB 3.0/2.0 headers
- 1 Connettore per uscite Audio Frontali
- 2 x Connettori USB 2.0/1.1
- 1 x Clear CMOS jumper
- Punti di lettura delle Tensioni
- 1 x Clear CMOS button
- 1 x Trusted Platform Module (TPM) header
- 1 x water cooling fan header (CPU_OPT)
- 2 x BIOS switches
- 10 x SATA 6Gb/s connectors
- 5 x system fan headers
- 2 x audio gain control switches
- 1 x I/O shield audio LED power connector
- 2 x M.2 Socket 3 connectors
- 3 x SATA Express connectors
- 1 x ECO button
- 1 x OC button
|
| Pannello Posteriore I/O |
- 2 x USB 2.0/1.1 ports
- 1 x USB Type-C™ Port, with USB 3.1 support
- 1 x optical S/PDIF Out connector
- 7 x USB 3.0/2.0 ports
- 2 x MMCX antenna connectors (2T2R)
- 1 Porta HDMI
- 1 Connessione per Mouse e Tastiera PS/2
- 1 x USB 3.1 Type-A port (red)
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
- 2 x RJ-45 ports
|
| I/O Controller |
|
| Monitoraggio H/W |
- Rilevamento dei voltaggi del sistema
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
- * Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- Support for DualBIOS™
- Use of licensed AMI UEFI BIOS
- 2 x 128 Mbit flash
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Support for Q-Flash Plus
|
| Altre Caratteristiche |
- Support for Smart Switch
- Support for Xpress Install
- Supporta il Q-Flash
- Support for APP Center
- * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Auto Green
- Support for Cloud Station
- @ BIOS ™
- EasyTune
- USB Blocker
- Smart TimeLock
- Fast Boot
- System Information Viewer
- Ambient LED
- 3D OSD
- Smart Keyboard
- Smart Backup
- Easy RAID
|
| Software in Bundle |
- Intel® Smart Response Technology
- Norton® Internet Security (OEM version)
|
| Sistema Operativo |
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
- * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
|
| Caratteristiche Fisiche |
- E-ATX Form Factor; 30.5cm x 26.4cm
|
| Box Contents |
- Motherboard driver disk
- I/O Shield
- User's Manual
- Quick Installation Guide
- One 2-Way SLI bridge connector
- One 3-Way SLI bridge connector
- One 4-Way SLI bridge connector
- One 2-Way CrossFire bridge connector
- One G Connector
- One pack of back I/O dust covers
- Wireless module driver disk

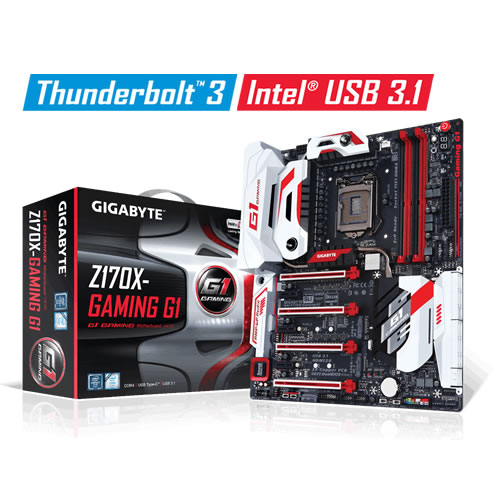

- GA-Z170X-Gaming G1 motherboard
- Six SATA cables
- One set of GC-USB3.1 BAY
- One GC-M2-U2-MiniSAS
- One Wi-Fi antenna
- One Wi-Fi antenna retention cover
|
| Note |
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- A causa delle diverse condizioni di supporto per Linux fornito da fornitori di chipset, scaricare il driver Linux dal sito web fornitori di chipset.
|
