| Processore |
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
- La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
|
| Chipset |
- Intel® Z170 Express Chipset
|
| Memoria |
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Architettura di memoria a doppio canale
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
- Supporta le memorie dotate di Profilo XMP
- Support for DDR4 3800(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
(Please refer "Memory Support List" for more information.)
|
| Grafica integrata |
Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
- 2 x Intel® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
- * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-9, "Back Panel Connectors," for more information.)
- * Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- * Support for HDMI 2.0 version.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
|
| Audio |
- Realtek® ALC1150 codec
- Audio ad alta definizione
- Audio a 2/4/5.1/7.1 canali
- Supporto per S / PDIF
|
| LAN |
- Intel® GbE LAN chip (10/100/1000 Mbit)
|
| Slot di Espansione |
- 1 Slot PCI Express 16X,
operante a 16X
*Per migliori Performance, se solo una Scheda Video PCI è installata,
assicurati che questi sia inserita in uno Slot PCI Express 16X.
- 1 Slot PCI Express 16X,
operante a 8X
* Lo Slot PCI Express 8X condivide la banda con lo slot PCI Express 16X,
ragion per cui quando lo slot da 8X è in uso quello da 16X lavora a 8X.
- 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
- * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
- 3 x Slot PCI Express
- (All of the PCI Express slots conform to PCI Express 3.0 standard.)
|
| Tecnologia Multi GPU |
- Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
- Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
|
| Interfaccia di storage |
Chipset:
- 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
- 3 x SATA Express connectors
- * Refer to "1-9 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
|
| USB |
Chipset:
- 5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header)
- 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+GENESYS LOGIC USB 2.0 Hub:
- 3 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+Intel® Thunderbolt™ 3 Controller:
- 2 x USB Type-C™ portson the back panel, with USB 3.1 support
|
| Connettori Interni I/O |
- 4 Connessioni per ventole
- 1 x Connettore di alimentazione PCIe
- 1 Connettore di Alimentazione ATX ad 8-pin
- 1 Connettore per Ventola della CPU
- 1 Connettore per Pannello Frontale
- 1 x Pulsante di accensione
- 1 x Pulsante di Reset
- 1 Connettore di Alimentazione ATX a 24-pin
- 2 x USB 3.0/2.0 headers
- 1 Connettore per uscite Audio Frontali
- 2 x Connettori USB 2.0/1.1
- 1 Porta seriale
- 1 x Clear CMOS jumper
- Punti di lettura delle Tensioni
- 1 x Clear CMOS button
- 1 x S/PDIF Out header
- 6 x SATA 6Gb/s connectors
- 1 x Trusted Platform Module (TPM) header
- 1 x water cooling fan header (CPU_OPT)
- 1 x M.2 Socket 3 connector
- 3 x SATA Express connectors
|
| Pannello Posteriore I/O |
- 2 x Thunderbolt™3 ports
- 1 x optical S/PDIF Out connector
- 4 x USB 2.0/1.1 ports
- 1 Porta HDMI
- 4 x USB 3.0/2.0 ports
- 1 Connessione per Mouse e Tastiera PS/2
- 1 Porta RJ-45
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
| I/O Controller |
|
| Monitoraggio H/W |
- Rilevamento dei voltaggi del sistema
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/CPU OPT/System fan fail warning
- CPU/System/Chipset overheating warning
- CPU/CPU OPT/System fan speed control
- * Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- Support for DualBIOS™
- Use of licensed AMI UEFI BIOS
- 2 x 128 Mbit flash
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Altre Caratteristiche |
- Support for Smart Switch
- Support for Xpress Install
- Supporta il Q-Flash
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
- Auto Green
- Support for Cloud Station
- @ BIOS ™
- EasyTune
- USB Blocker
- Smart TimeLock
- Fast Boot
- System Information Viewer
- Ambient LED
- 3D OSD
- Smart Keyboard
- Smart Backup
- Easy RAID
|
| Software in Bundle |
- Intel® Smart Response Technology
- cFosSpeed
- Norton® Internet Security (OEM version)
|
| Sistema Operativo |
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
- * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
|
| Caratteristiche Fisiche |
- ATX Form Factor; 30.5cm x 24.4cm
|
| Box Contents |

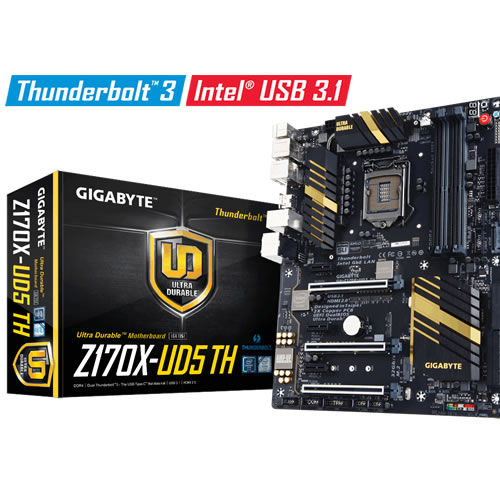

- GA-Z170X-UD5 TH motherboard
- Motherboard driver disk
- I/O Shield
- User's Manual
- Quick Installation Guide
- Four SATA cables
- One 2-Way SLI bridge connector
- One G Connector
- One pack of back I/O dust covers
|
| Note |
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- A causa delle diverse condizioni di supporto per Linux fornito da fornitori di chipset, scaricare il driver Linux dal sito web fornitori di chipset.
|
